category:
Gas Valves
country_of_origin:
MX
manufacturer:
White Rodgers
mpn:
25M01A100
Product Description

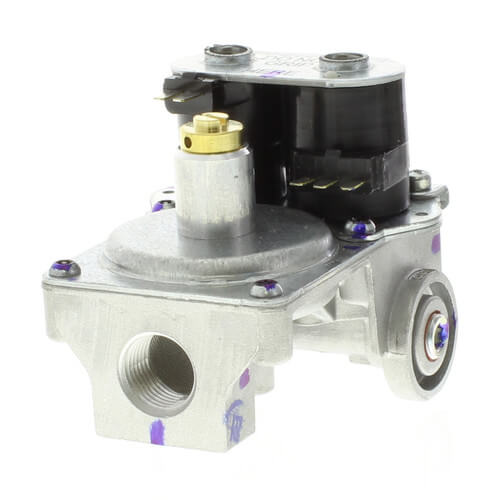

White Rodgers - 25M01A100 Clothes dryer gas valves combine pressure regulator main and redundant solenoids for hot surface ignition dryers
Features:
- Compact split coil design
- Inlet/outlet screen
- Field-adjustable regulator
- Replaceable operating coils (no gas interruption)
- Outlet pressure tap
- Both models packaged with the most popular main burner orifices to replace many OEM models
Additional Information
Ambient Operating Temperature32° to 155°F
Mounting OptionsControl may be mounted in the following positions: horizontal, vertical or 90° of horizontal. Do not mount upside down.
Pressure14 W.C. (? PSI) max
Electrical120 Vac, 60 Hz, .06 amps
CoilVoltage120 Vac
Flow DirectionRight Angle Left
Inlet - Outlet Size3/8 in. NPT X 11/32 in.
Regulator Adjustment RangeNat. Gas: 2.8 to 5.4 W.C. LP Gas: 8.5 to 12.0 W.C. (Conversion Kit Included)
Gas TypeNatural or LP gas (conversion kit included)
Regulator SettingNat. Gas: 2.8 to 5.4 W.C., LP Gas: 8.5 to 12.0 W.C.
1.0 Pressure Drop Capacity40,000 BTU/HR
