category:
Electric & Heating Controls
manufacturer:
White Rodgers
mpn:
097849
subcategory:
Mini Pressure Control
Product Description

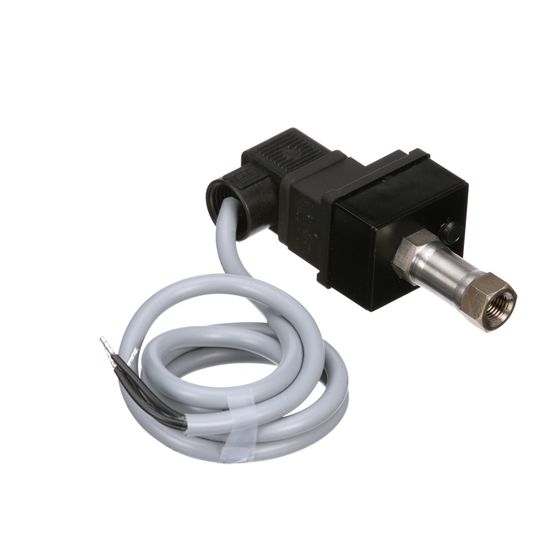

White Rodgers - 097849 The PSC Mini Pressure Control provides the ultimate in reliability and flexibility in a commercial grade mini pressure control. A standard plug connectable design simplifies installation and service. The SPDT switch allows the addition of alarm circuits on high or low pressure applications. Models with high temperature bellows and built-in pressure pulsation snubbers make the PSC ideally suited for compressor head mounting high pressure limit control applications?automatic or manual reset versions are available.
Features:
- Commercial Grade High/Low/Condenser Fan Cycling Pressure Controls for use on Refrigeration/AC Applications
- Mini-Size 2 X 1-1/2 X 2-3/4
- Standard SPDT Switch Action
- Automatic or Manual Reset
- Models available with high temperature bellows and built-in pressure pulsation snubber for direct head mount high pressure sensing/limit applications
- Plug Connectable with hub for 1/277 flexible conduit
- Factory preset to customer desired pressure specifications
- Precise, repeatable settings
- Narrow differential Micro switch available on low pressure models
Additional Information
WeightWeight - Approximately 0.25 lb. depending on configuration
Temperature RangeStorage -30° to +160°F, Operating -20° to +140°F
Mounting OptionsFree Standing Direct Mount
PressureHigh Pressure - Bellows design Maximum media temperature 300°F, Internal Pressure Pulsation Snubber Available For Direct Head Mount
Electrical Ratings6 FLA/36 LRA
ConnectorsDIN Plug with 1/2 NPTF Hub for Flex Conduit Connection 36 Cable
CompatibilityHFC, HCFC, CFC
Reset DesignA (Auto)
High Event Range/Contacts (psig)1 (7.4 to 90)
High Event Range (psig)1 (7.4 to 90)
Differential Range (psid)9 Low/15 High
Setting5/15
Maximum Over Pressure360 psig
Electrical Rating Standard SwitchSPDT Switch Standard Switch - High/Low Pressure Load Contact: 6 FLA - 36 LRA - 120/240 Vac Pilot Duty: 240 Va @ 120, 480 Va @ 240 Vac Back Contact 0.5 A 120/240 Vac Pilot Duty
Electrical Rating Micro SwitchMicro Switch - Low Pressure - 2.5 FLA - 15 LRA - 120/240 Vac Pilot Duty: 120 Va @ 120, 240 Va @ 240 Vac - Back Contact 0.5 Amp 120/240 Vac Pilot Duty
Low Pressure - Single Diaphragm Maximum Media Temperature150°F
