category:
Pressure Switches
manufacture:
Winters Instruments
mpn:
3WPS0306F2F201
subcategory:
3Wps Vacuum Low Pressure Switch
Product Description

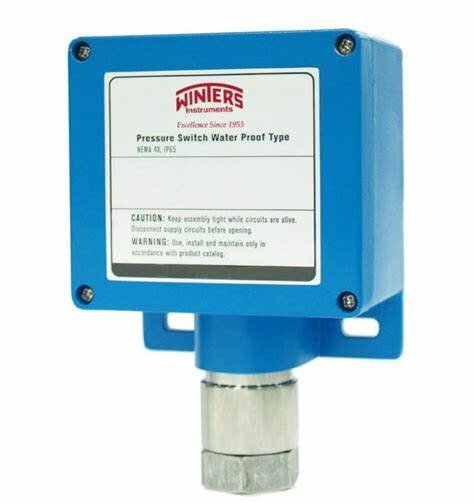

Winters Instruments - 3WPS0306F2F201
Features
- General Purpose, watertight pressure switch
- Vacuum pressure to 10 psi
- High current ratings for 1 x SPDT or 2 x SPDT switches
- Fixed deadband
- Die cast aluminum construction with welded seal
- 1% accuracy
- NEMA 4 4X, IP66 rated
- RU recognized (switch only), file no E12252
- CRN registration pending
- 5 year warranty
Applications
Suitable for pump and compressor monitoring, HVAC systems and general industrial applications
Additional Information
HousingHeavy-duty die-cast aluminum, blue colour
Accuracy+/- 1% of the adjustable set-point range
Pressure Connection1/2” NPT, BSP and M20xP1.5
Electrical ConnectionFemale 1/2” or 3/4” NPT, M20xP1.5
Wetted Parts316 Stainless Steel welded (except for Vacuum range, Viton o-ring)
Set Point AdjustmentField selectable
DeadbandFixed, see Order Codes
Contact Rating15A @ 125/250VAC, 0.4A @ 125VDC, 3A @ 30VDC, Gold contact microswitch 1A @ 125/250VAC
No. of Contacts1 x SPDT or 2 x SPDT
Ambient/Process Temperature-30 to 205 deg C (-22 to 400 deg F), Vacuum range only -5 to 150 deg C (23 to 300 deg F)
Enclosure RatingNEMA 4 4X, IP66, Protection against liquid and solid ingress, suitable for indoor or outdoor use and resistant to corrosion
ApprovalsRU recognized, file #E12252 (switch only), CRN registration pending
Weight3.35 lbs (1.52 kg)
