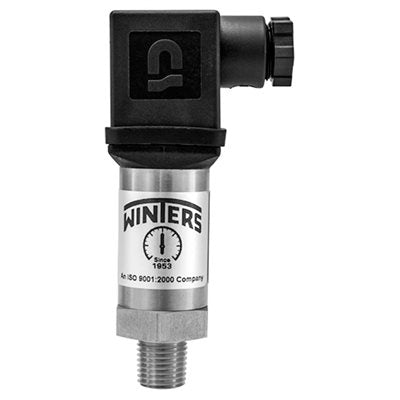

Winters Instruments - LE31105P5GN4CVU
Features
- Developed for use in general industry and OEM applications, where versatility and low cost are requirements
- Compact stainless steel construction with ceramic sensor
- Available ranges include Vac to 10,000 psi
- Wide range of mechanical and electrical connections
- ±0.5% accuracy
- IP65 and IP67
- Built-in restrictor screw on ranges 1,500 psi
- UL listed or UL recognized for USA and Canada
- 5 year warranty
Applications
Suitable for all process and automation control, hydraulics and pneumatic sensing, pump and compressor monitoring, refrigeration and HVAC
Additional Information
Output Signal4…20 mA, 2-wire / Vs
Response Time4…20 mA
Current Consumption4…20 mA
Accuracy±0.5% Full Scale Output, ±0.6% FSO for ranges greater and equal to 4,000 psi
Long-Term Stability±0.2% FSO (typically per year)
Wetted Parts316SS Pressure port, Ceramic sensor with Viton O-ring
Shock50 g’s 11 ms, MIL-STD 202 Method 213 G
Vibration15 g’s 10 to 2,000 Hz, MIL-STD 202
Storage Temperature-40 to 100 deg C (-40 to 212 deg F)
Media Temperature-40 to 120 deg C (-40 to 248 deg F)
Reverse Polarity ProtectionYes
EMI-EMC ComplianceIEC 61000 4-2 to 4-6, IEC 61326-1 Class A
Enclosure RatingNEMA 4X; IP65 or IP67
ApprovalsUL listed or UL recognized for USA and Canada, CRN pending
ComplianceRoHS, REACH, CE
Operation Life1 million cycles, minimum
Weight120 g (4.23 oz)
CategoryPressure Transmitters
ManufactureWinters Instruments
MpnLE31105P5GN4CVU
SubcategoryLe3 General Purpose Pressure Transmitter
