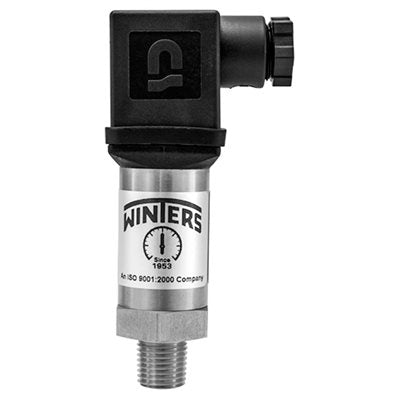

Winters Instruments LE31TR5P5GN4CVU Le3 General Purpose Pressure Transmitter

Back Order

Get it by Sat, May 24 - Thu, May 29

SKU SKU:kpi073-LE31TR5P5GN4CVU

$559.11 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

category: Pressure Transmitters

manufacture: Winters Instruments

mpn: LE31TR5P5GN4CVU

subcategory: Le3 General Purpose Pressure Transmitter

Product Description

Winters Instruments - LE31TR5P5GN4CVU

Developed for use in general industry and OEM applications, where versatility and low cost are requirements
Compact stainless steel construction with ceramic sensor
Available ranges include Vac to 10,000 psi
Wide range of mechanical and electrical connections
±0.5% accuracy
IP65 and IP67
Built-in restrictor screw on ranges 1,500 psi
UL listed or UL recognized for USA and Canada
5 year warranty

Suitable for all process and automation control, hydraulics and pneumatic sensing, pump and compressor monitoring, refrigeration and HVAC

Output Signal4…20 mA, 2-wire / Vs

Response Time4…20 mA

Current Consumption4…20 mA

Accuracy±0.5% Full Scale Output, ±0.6% FSO for ranges greater and equal to 4,000 psi

Long-Term Stability±0.2% FSO (typically per year)

Wetted Parts316SS Pressure port, Ceramic sensor with Viton O-ring

Shock50 g’s 11 ms, MIL-STD 202 Method 213 G

Vibration15 g’s 10 to 2,000 Hz, MIL-STD 202

Storage Temperature-40 to 100 deg C (-40 to 212 deg F)

Media Temperature-40 to 120 deg C (-40 to 248 deg F)

Reverse Polarity ProtectionYes

EMI-EMC ComplianceIEC 61000 4-2 to 4-6, IEC 61326-1 Class A

Enclosure RatingNEMA 4X; IP65 or IP67

ApprovalsUL listed or UL recognized for USA and Canada, CRN pending

ComplianceRoHS, REACH, CE

Operation Life1 million cycles, minimum

Weight120 g (4.23 oz)
