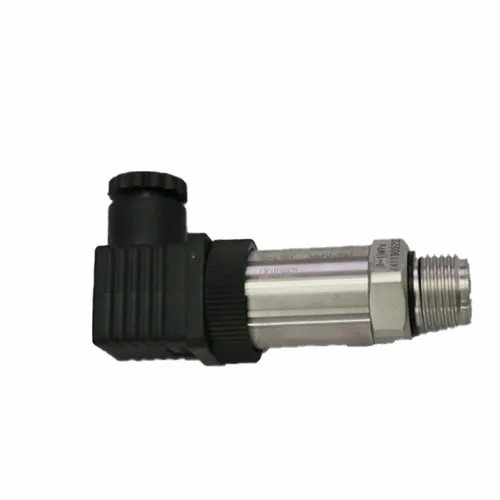

Winters Instruments LTF1101T5GG26S Ltf Flush Mount Pressure Transmitter

Dropship

Get it by Sat, Jul 12 - Thu, Jul 17

SKU SKU:kpi073-LTF1101T5GG26S

$1,550.69 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

category: Pressure Transmitters

manufacture: Winters Instruments

mpn: LTF1101T5GG26S

subcategory: Ltf Flush Mount Pressure Transmitter

Product Description

Winters Instruments - LTF1101T5GG26S

Flush mounted stainless steel diaphragm to eliminate any debris build-up in the pressure cavity
Compact yet rugged stainless steel housing with highly accurate stainless steel sensor
Available ranges from vacuum to 10,000 PSI (700 BAR)
DIN-style electrical connection, cable outlet M12 also available
±0.5% accuracy standard, ±0.25% accuracy optional
CE mark and RoHS compliant
Electromagnetic protection
5 year warranty

Ideally suited for the pressure measurement of viscous fluids or media which may clog a standard process connection

Output Signal4…20 mA, 2-wire / Vs

Accuracy±0.5% Full Scale Output, ±0.25% FSO optional

Overload/Burst Pressure 1,500 PSI @ 200%, 10,000 PSI @ 300%

Load ResistanceRL

Long Term Stability±0.25% FSO (typically per year)

Response Time1 ms

Storage Temperature-10 to 70 deg C (14 to 158 deg F)

Operating Temperature-40 to 85 deg C (-40 to 185 deg F)

Insulation Resistance100 MΩ @ 50 VDC

Reverse PolarityYes

ProtectionYes

Electromagnetic ProtectionYes

Enclosure RatingIP65 for DIN 43650-A, IP66 for Cable Outlet / M12

Housing1Cr18Ni9Ti

Wetted Parts316L welded sensor

Process ConnectionsG1/4, G1/2, G3/4, G1 and M20*1.5

Operation Life1 million cycles, minimum

Weight185 grams (0.4 pounds)
