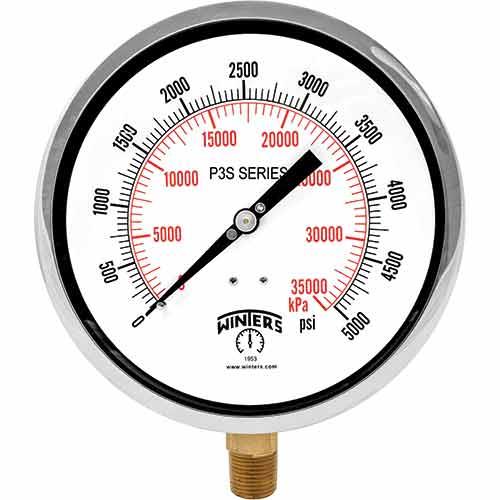

Winters Instruments - PDT8071
Features
- Brass or stainless steel wetted parts
- Both conventional and balanced scale available
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Applications
Single pointer to show difference from two pressure sources|Typically used to measure pressure drops across a filter, pump or other equipment
Additional Information
Dial4.5” (115mm), 6” (150mm) white aluminum with black markings
CaseAluminum, painted black
Front FlangeSS
Back FlangeBlack steel
LensGlass
Ring4.5” (115mm): SS, 6“ (150mm): Aluminum
SocketBrass or 316 SS
Connections1/4” NPT standard
ScalePSID only
Bourdon TubesPhosphor bronze or AISI 316 SS, independent, matched
MovementBrass
PointerAluminum (micrometer)
WeldingTin/copper alloy for brass internals, TIG argonarc for SS internals
Over-Pressure Limit30% of full scale value
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)
Accuracy±1% ANSI/ASME Grade 1A
CategoryPressure Gauges
ManufactureWinters Instruments
MpnPDT8071
SubcategoryPdt Differential Pressure Gauge
