category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
PEM198
subcategory:
Pem Economy Pressure Gauge Pem Lf Lead Free Economy Pressure Gauge
Product Description

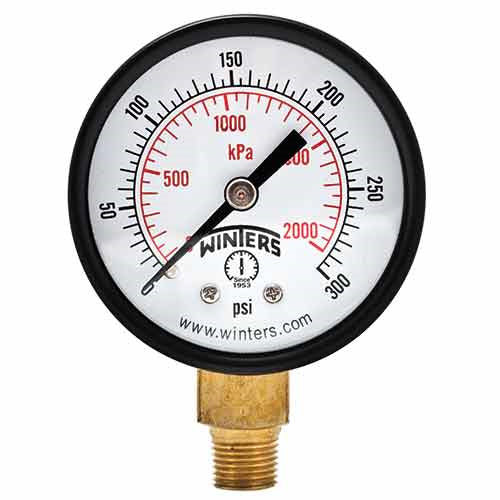

Winters Instruments - PEM198
Features
- Most economical, all-purpose pressure gauge
- 1.5” (40mm) to 4” (100mm) sizes
- Friction bezel rings
- Black steel case
- Brass or lead free brass wetted parts
- ASME B40.100 compliant (EN837-1 available)
- ±3-2-3% accuracy
- CRN registered
- Lead free version NSF-61-372 certified
- 5 year warranty
Applications
Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors, OEM
Additional Information
Dial1.5” (40mm), 2” (50mm), 2.5” (63mm), 4” (100mm) white aluminum with black and red markings
Case Steel, painted black (plastic available)
Lens1.5” (40mm), 2” (50mm), 2.5” (63mm): Acrylic, 4” (100mm): Glass
Ring1.5” (40mm), 2” (50mm): Steel, painted black, 2.5” (63mm), 4” (100mm): Steel, chrome plated
SocketPEM: Brass, PEM-LF: Lead Free Brass, NSF-61-372 certified
Connection1/8” NPT or 1/4” NPT standard
Bourdon TubePEM: Phosphor bronze, PEM-LF: Lead free phosphor bronze, NSF-61-372 certified
MovementPEM: Brass, PEM-LF: Lead free brass, NSF-61-372 certified
PointerAluminum, black
WeldingSilver alloy
Over-Pressure Limit25% of full scale value
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)
Accuracy±3-2-3% ANSI/ASME Grade B
Enclosure RatingIP52
WarningThis product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
