category:
Pressure Gauges
manufacture:
Winters Instruments
mpn:
PRL024
subcategory:
Prl Regulator Gauge
Product Description

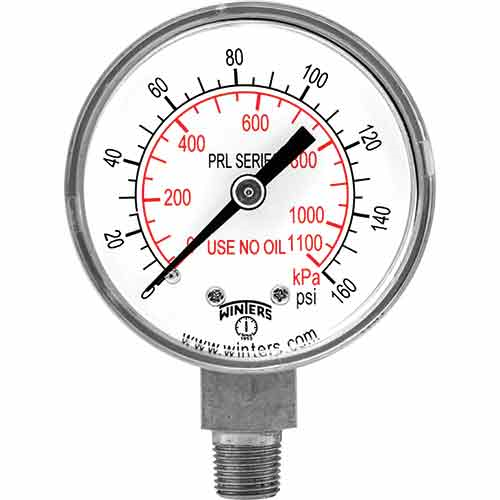

Winters Instruments - PRL024
Features
- Small diameter, all stainless steel gauge
- 1.5” (40mm) and 2” (50mm) dials
- Full view snap-in lens
- Back and bottom connection
- ASME B40.100 compliant
- RoHS compliant
- CRN registered
- 5 year warranty
Applications
Regulators, valve positioners and actuators that require a reliable and corrosion-resistant pressure gauge
Additional Information
Dial1.5” (40mm), 2” (50mm) white aluminum with black and red markings
Case304 SS
LensAcrylic, snap-in type
Socket316 SS
Connection1/8” NPT or 1/4” NPT standard
Bourdon Tube316 SS
Movement304 SS
PointerAluminum, painted black
WeldingSilver alloy
Over-Pressure Limit25% of full scale value
Working PressureMaximum 75% of full scale value
Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)
Accuracy±2.5% of full scale
Enclosure RatingIP52
