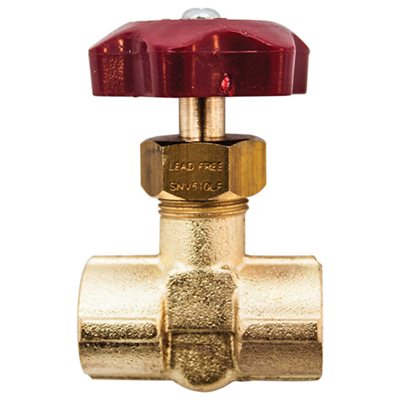

Winters Instruments - SNV510
Features
- An isolation valve for pressure gauges and transmitters
- For mild applications, this valve can be used to throttle pulsation. Please see NVA Stainless Steel Needle Valve for more demanding applications
- Brass or lead free brass wetted parts
- ASME B1.20.1 compliant
- CRN registered
- 5 year warranty
Applications
Provides precision flow control for any non-corrosive application up to 400 psi (2,758 kPa)
Additional Information
BodySNV: #59-1 Forged brass, SNV-LF: #59-1 Lead free forged brass
HandleABS plastic, dyed red
O-ringRubber
ShaftSNV: #59-1 Brass, SNV-LF: Lead free brass
NutSNV: #59-1 Brass, SNV-LF: Lead free brass
Ambient/Process Temperature-9°F to 212°F (-23°C to 100°C)
Maximum Operating Pressure400 psi (2,758 kPa)
Connection1/4” NPTF
WarningThis product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
CategoryValves
ManufactureWinters Instruments
MpnSNV510
SubcategorySnv Needle Valve Snv Lf Lead Free Needle Valve
