category:
Thermometers
manufacture:
Winters Instruments
mpn:
TSW173
subcategory:
Tsw Hot Water Thermometer Tsw Lf Lead Free Hot Water Thermometer
Product Description

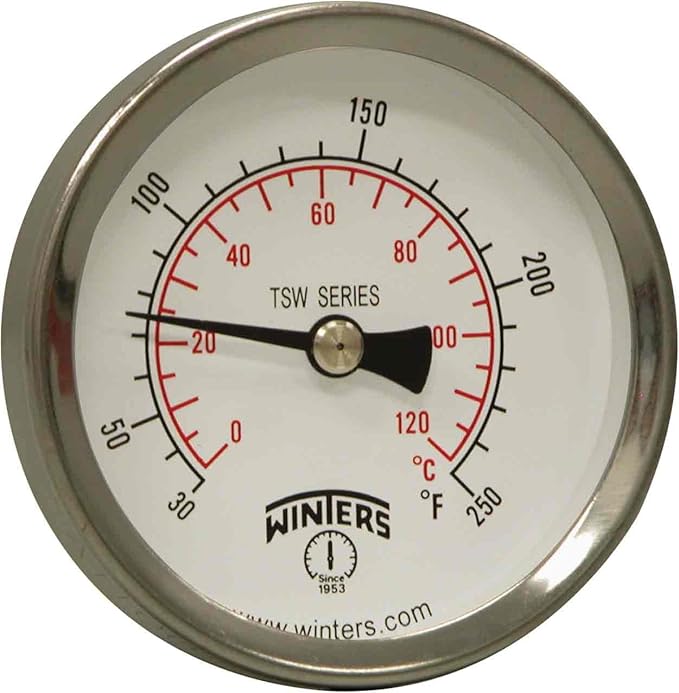

Winters Instruments - TSW173
Features
- An economical and accurate way to measure air or water temperatures
- Separable brass or lead free brass thermowell
- Bi-metallic element (dial type only)
- Dual scale (°F °C)
- Dial type or vertical scale type
- Easy to install
- 1/2” NPT process connection
- ASME B40.200 compliant
- 5 year warranty
Applications
Hot water lines, boilers and hydronic heating
Additional Information
Dial(For Dial Type)2.5” dial (63mm), aluminum, painted white with black and red markings
Case(For Dial Type)Aluminum
Lens(For Dial Type)Glass
Ring(For Dial Type)Steel, chrome plated
Thermowell(For Dial Type)TSW: Brass (HPB59-1), 1/2” NPT (standard), separable, TSW-LF: Lead free brass, 1/2" NPT (standard), separable
Stem(For Dial Type)Brass
Scale/Case(For Scale Type)8" (200mm) scale with steel case, painted white with black markings
Tube(For Scale Type)#N-16 glass
Sensing Liquid(For Scale Type)Organic fluid
Thermowell(For Scale Type)TSW: Brass (HPB59-1), 1/2” NPT standard, separable, TSW-LF: Lead free brass, 1/2" NPT standard, separable
Accuracy(For Scale Type)±1%
Warning(For Scale Type)Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
