White Rodgers

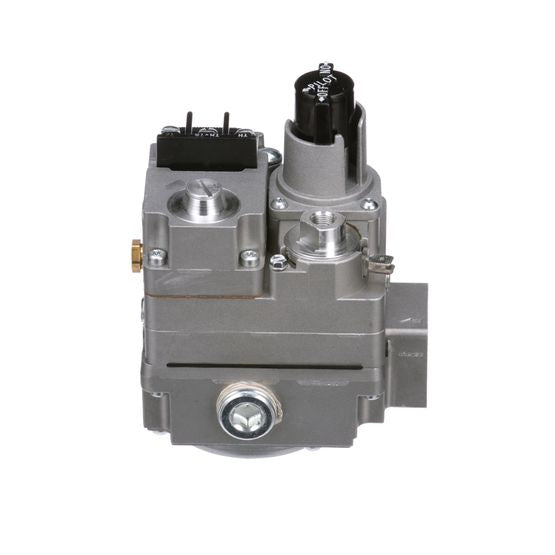

36C03-333, 36C Series Gas Valves

36C03-333, 36C Series Gas Valves

Dropship

SKU SKU:kpi002-36C03-333

Regular price $127.78 USD
Regular price Sale price $127.78 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Gas Valves
country_of_origin: TW
manufacturer: White Rodgers
mpn: 36C03-333
subcategory: Furnace Gas Valve

Ideal general purpose replacements for Standing Pilot systems.

Features:

  • Line Interrupter styles use standard 30 mV Thermocouples.
  • Straight through design with side taps
  • Inlet/outlet reducer bushings
  • Mounting position upright, or 0° to 90°From upright in any direction.
  • CSA approved

Additional Information

Voltage24 Vac 60 Hz
Pipe Size1/2 in. X 3/4 in.
Flow DirectionStraight Through
Regulator Adjustment Range7.5-12.0, LP Gas
Regulator Setting3.5
Opening Style1 - Stage Fast Opening
LP Conversion Kit IncludedYes
Reducer Bushing KitYes
Side TapsYes
Inlet/Outlet Pressure TapYes/Yes
Standing Pilot with Line InterrupterYes
HSI/DSINo
Intermittent/Proven PilotNo
