White Rodgers

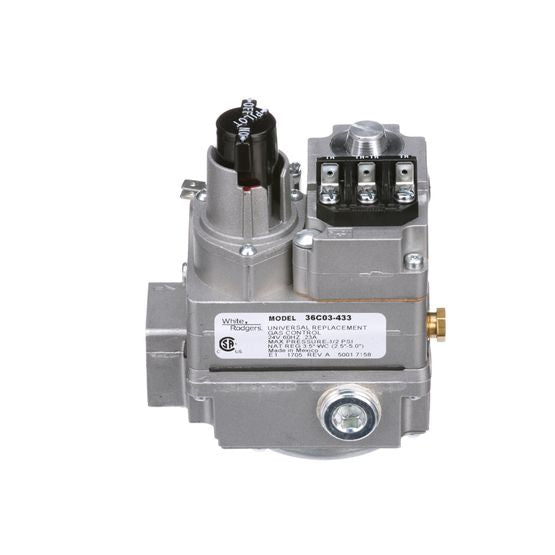

36C03-433, 36C Series Gas Valves

36C03-433, 36C Series Gas Valves

In Stock - 1 (Available by Fri, Oct 30 - Sat, Nov 07)

SKU kpi002-36C03-433

GTIN : 786710547690

MPN : 36C03-433

$204.87 USD
$204.87 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

White Rodgers - 36C03-433 Ideal general purpose replacements for Standing Pilot systems.

Features:

  • Line Interrupter styles use standard 30 mV Thermocouples.
  • Straight through design with side taps
  • Inlet/outlet reducer bushings
  • Mounting position upright, or 0° to 90°From upright in any direction.
  • CSA approved

Additional Information

Voltage24 Vac 60 Hz
Pipe Size3/4 in. x 3/4 in.
Flow DirectionStraight Through
Regulator Adjustment Range7.5-12.0, LP Gas
Regulator Setting3.5
Opening Style1 - Stage Fast Opening
LP Conversion Kit IncludedYes
Reducer Bushing KitYes
Side TapsYes
Inlet/Outlet Pressure TapYes/Yes
Standing Pilot with Line InterrupterYes
HSI/DSINo
Intermittent/Proven PilotNo
CategoryGas Valves
Country of originMX
Custom label 2in-stock
ManufacturerWhite Rodgers
Mpn36C03-433
SubcategoryFurnace Gas Valve
