category:
Gas Valves
country_of_origin:
TW
manufacturer:
White Rodgers
mpn:
36G32-500
subcategory:
Furnace Gas Valve
Product Description

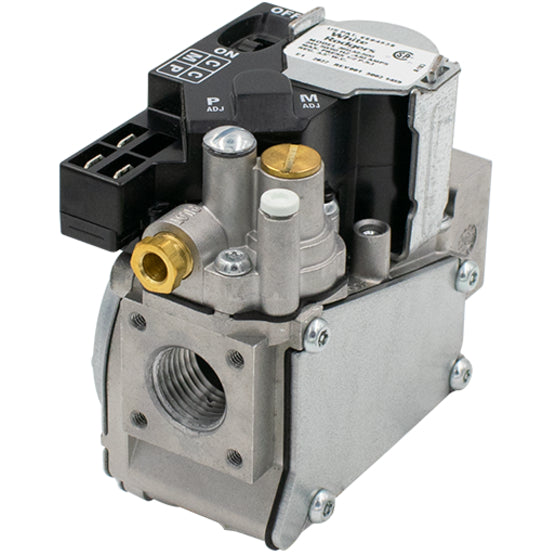

White Rodgers - 36G32-500 Universal Single Stage HSI/DSI/Intermittent/Proven Pilot Gas Valve, 24V, Flow - Straight Thru, 1/2" X 1/2" NPT with Flange Mount Bolt Option, Fast Open, Electric On/Off Switch, 1/4" Male Spade Quick Connect Terminals, Equipped with Both 1/8 NPT Taps and Tower Pressure Taps, Includes Pilot Fitting, Pilot Plug LP Conversion Kit
Features:
- Designed for Intermittent Pilot, Proven Pilot, Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
- Fast open, single stage models.
- Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
- Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
- Mounts in any position including upside down
- CSA approved
Additional Information
Voltage24 Vac 50/60Hz
Pipe Size1/2 in. X 1/2 in.
Flow DirectionStraight Through
Regulator Adjustment Range7.0-12.0, LP Gas
Regulator Setting3.5
Opening Style1 - Stage Fast Opening
LP Conversion Kit IncludedYes
Reducer Bushing KitNo
Side TapsNo
Inlet/Outlet Pressure TapYes/Yes, NPT and Towers
Standing Pilot with Line InterrupterNo
HSI/DSIYes
Intermittent/Proven PilotYes
