availability:
In stock
category:
Gas Valves
country_of_origin:
TW
custom_label_2:
in-stock
manufacturer:
White Rodgers
mpn:
36J27-554
subcategory:
Furnace Gas Valve
Product Description

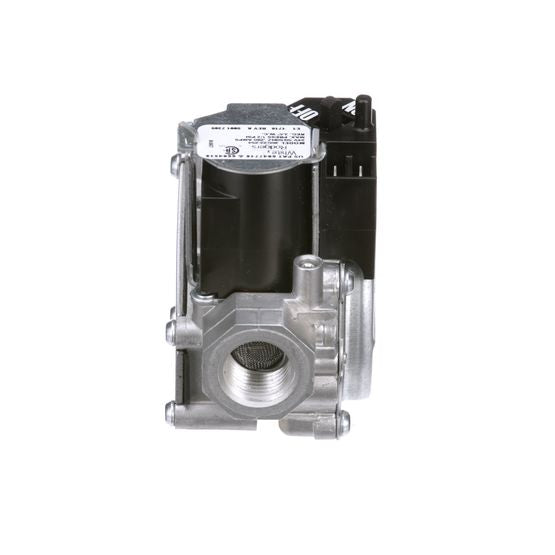

White Rodgers - 36J27-554 Electronic Ignition Gas Valve. The Versatile 36J Series Combination Gas Valve covers a wide range of applications. Designed for use with common ignition systems (HSI/DSI). 36J is our most compact footprint Combination Gas Valve.
Features:
- Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
- Slow open, modulating models.
- Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
- Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
- Mounts in any position including upside down
- CSA approved
Additional Information
Voltage24 Vac 50/60Hz
Pipe Size1/2 in. X 1/2 in.
Flow DirectionStraight Through
Regulator Adjustment Range1.3-11.5, LP Gas
Regulator Setting3.5
Opening StyleModulating
LP Conversion Kit IncludedYes
Reducer Bushing KitYes
Side TapsNo
Inlet/Outlet Pressure TapYes/Yes
Standing Pilot with Line InterrupterNo
HSI/DSIYes
Intermittent/Proven PilotNo
