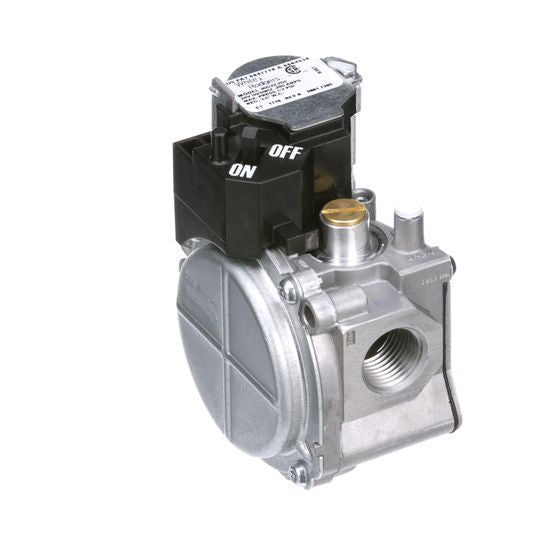

36J55-614, 36G-36J Series Gas Valves

In Stock - 3 (Available by Sun, May 11 - Tue, May 20)

SKU SKU:kpi002-36J55-614

(0 rating)

$130.58 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

30-day returns
Fast shipping
Secure payments
Over 300,000 products

availability: In stock

category: Gas Valves

country_of_origin: MX

custom_label_2: in-stock

manufacturer: White Rodgers

mpn: 36J55-614

subcategory: Furnace Gas Valve

Product Description

White Rodgers - 36J55-614 Electronic Ignition Gas Valve. The Versatile 36J Series Combination Gas Valve covers a wide range of applications. Designed for use with common ignition systems (HSI/DSI). 36J is our most compact footprint Combination Gas Valve.

Features:

Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
Slow open, two stage models.
Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
Mounts in any position including upside down
CSA approved

Additional Information

Voltage24 Vac 50/60Hz

Pipe Size1/2 in. X 1/2 in.

Flow Direction90° Bottom Outlet

Regulator Adjustment Range4.0-10.0 Low, 6.0-12.0 High, LP Gas

Regulator Setting1.5 Low3.5 High

Opening Style2 - Stage Slow Opening

LP Conversion Kit IncludedYes

Reducer Bushing KitNo

Side TapsNo

Inlet/Outlet Pressure TapYes/Yes

Standing Pilot with Line InterrupterNo

HSI/DSIYes

Intermittent/Proven PilotNo

36J55-614, 36G-36J Series Gas Valves
