Product Description

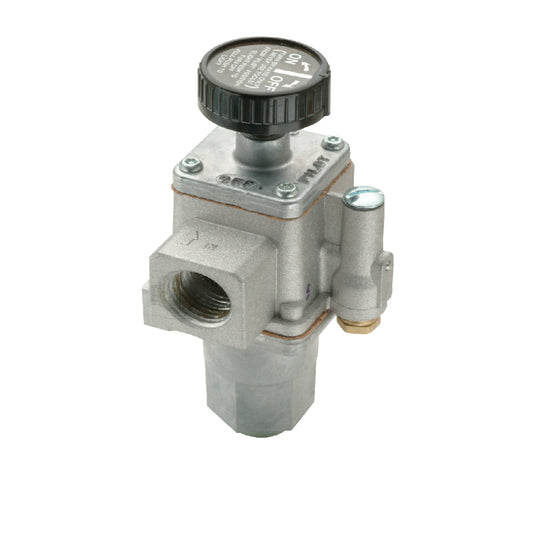

White Rodgers - 764-501 Thermocouple operated control with 100% shut off
- Manual on-off knob and thermocouple operated pilot safety
- Inlet screen and inlet pipe stop
- Mounts in any position including upside down.
Additional Information
Inlet Connection Size1/2 NPT
Outlet Connection SizeMain 1/2 NPT, pilot compression fitting for 1/4 OD tubing
Pressure1/2 PSI (14.0 W.C.)
Operating Voltage20-30 mV
Flow DirectionStraight Through Design
Regulator Adjustment RangeNon-regulated
Agency ApprovalsC.S.A. approved
1.0 in. Pressure Drop Capacity(Nat. Gas) Straight Thru 124,000 BTU/HR, (LP Gas) 200,880 BTU/HR
Swing Radius2.5
