door_size:
30 wide x 30 high
manufacturer:
Acudor
mpn:
AFPS3030
Product Description

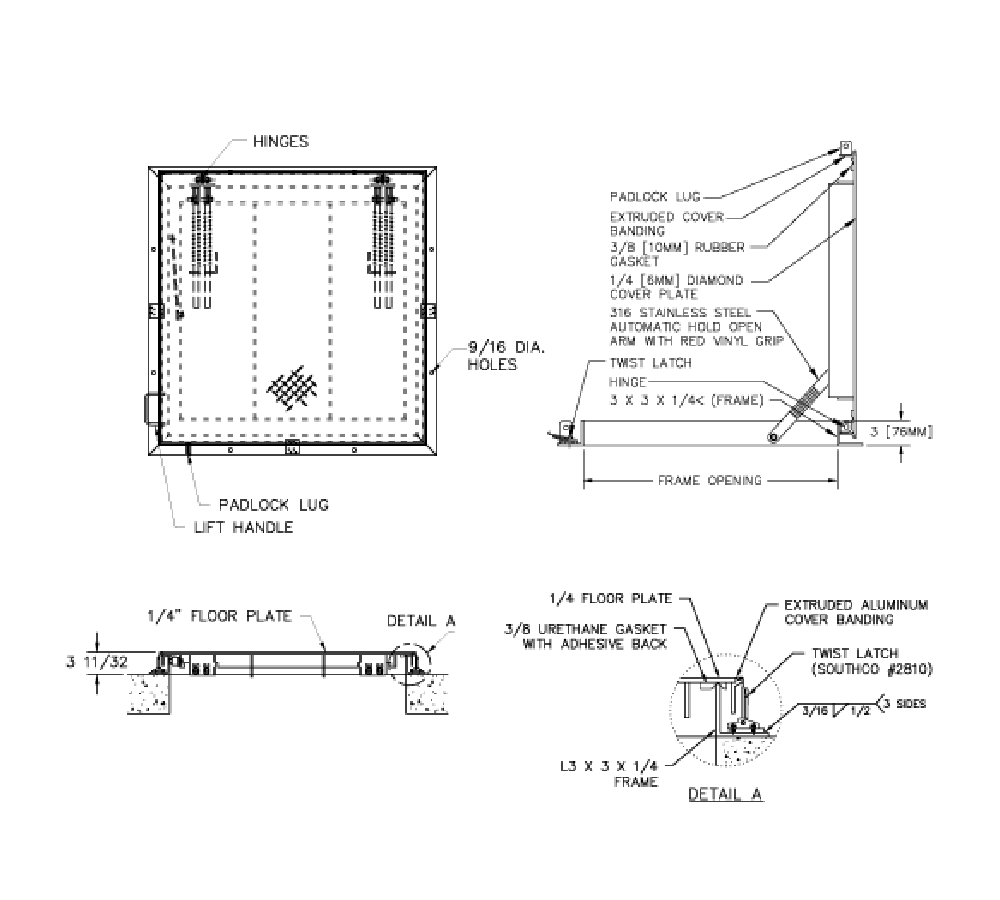

Acudor - AFPS3030 30" x 30" Floodtight Floor Door - AcudorTheA-FPS Series aluminum floor doors are designed for interior and exterior floodtight applications where water may rise above the surface opening. The angle frame construction with 4" high horizontal leg allow for bolting to the concrete. The diamond plate door panel is reinforced to 625 pounds/sq ft (capable of holding up to 10 feet head of water). The door panel overlaps the frame, compressing the gasket, providing for a floodtight fit.
Additional Information
Door Size: 30 wide x 30 high
Material: Aluminum door frame, type 316 Stainless steel hinges hardware
Lock/Latch: Type 316 stainless steel pressure lock system and exterior staple for padlock
Flange: 3/8 aluminum with 4 high raised frame for bolting to concrete"
Hinge: 316 stainless steel butt hinges with tamper proof stainless steel bolts and nuts.
Finish: Mill finish with bituminous coating applied to exterior of frame
Gasketing: U shaped neoprene gasket and stainless steel pressure lock system ensurethe door will not leak
Load Rating: 625 lbs/sqft
LEED Certification: View LEED details
