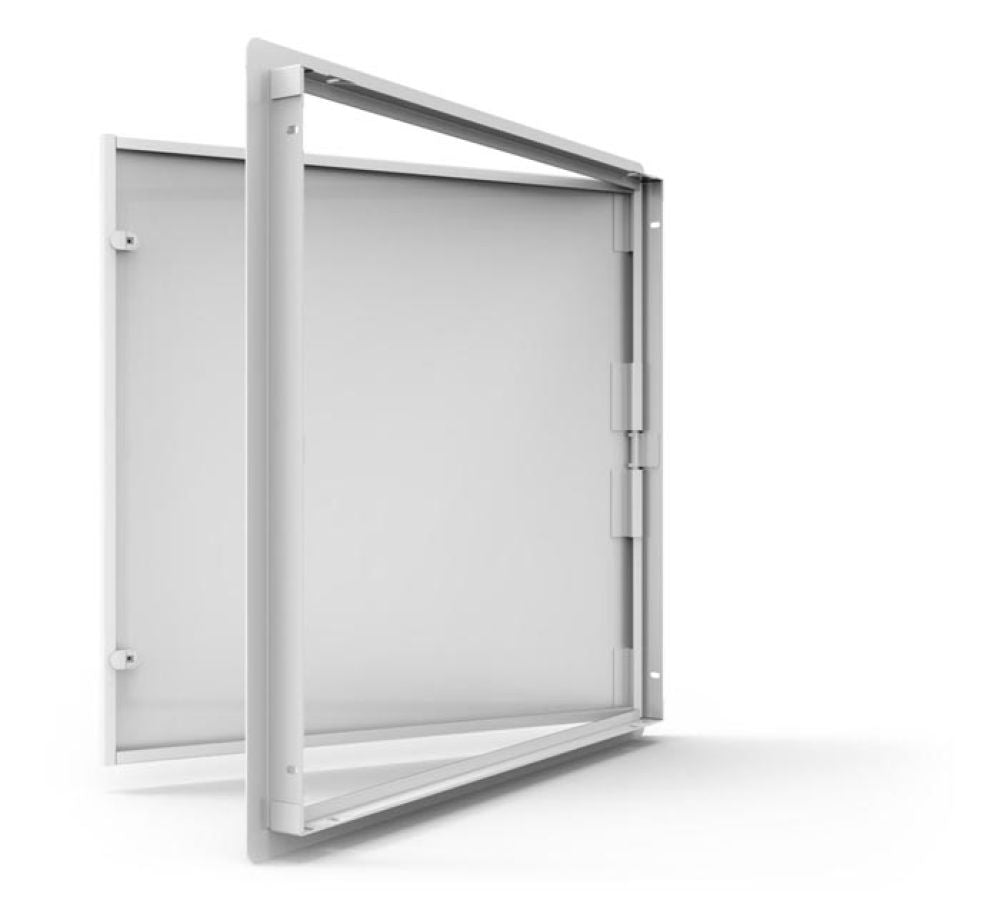

Acudor AL-9500 16" x 16" Anti Ligature Access Door - For Wall and Ceiling

Products Overview

Acudor Access Panels is one of the top companies that provide quality Access Doors; you will surely be satisfied with its various options for many different applications. One of our top products is the 16” x 16” AL-9500 Specialty Access Door.

This access door is specially designed for anti-ligature installation. The 16” x 16” AL-9500 is commonly used in prisons, correctional facilities, psychiatric hospitals, etc. It is designed to provide a fully gasketed fit for applications in different walls and ceilings.

You will definitely prefer this access door for your facility since it has a fully gasketed access door with a formed door panel with reinforced edges and a concealed hinge. It is also fully welded with a frame flange, partnered with radiused corners, and a closed-cell gasket between the door and frame.

Other Specifications;

• Door/Door Frame: 16” x 16” Stainless Steel or Steel: 14 gauge door, 14 gauge mounting frame, flange to be 1” wide
• Hinge: Concealed
• Gasket: Pemko S88 adhesive-backed bulb silicone gasket
• Standard Latch: Tamper-proof spanner head cam latch
• Optional Latches/Locks: Torx head, Cylinder Lock, Mortise Lock
• Finish: Stainless steel: #4 satin polish.Steel: 5 stage iron phosphate with prime coat of White alkyd baked-on enamel
