Product Description

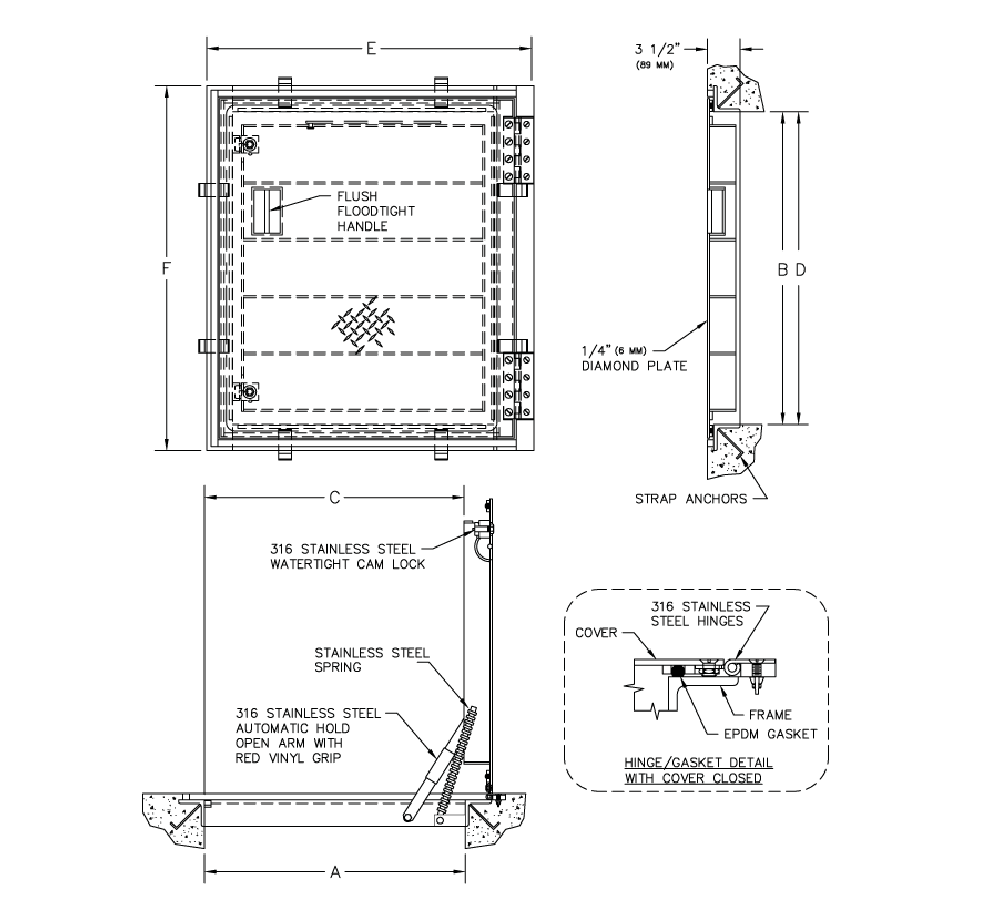

Acudor - AWAPS2424 24" x 24" Floodtight/Gastight Floor Door - Acudor
The APS Series aluminum floors doors are designed for interior and exterior applications where floodtight or gastight is required. The angle frame construction is designed to be cast into concrete. The diamond plate door panel is reinforced for a live load of 1560 pounds/sq ft (capable of holding up to 25 ft head of water).The door panel overlaps the frame, compressing the gasket, providing for a floodtight/gastight fit.
Product Features
- Angle frame construction with anchors welded around the frame for casting into concrete.
- Diamond plate door panel is reinforced for a live load of 1560 pounds/sqft. (capable of holding up to 25 ft. head of water).
- Door panel overlaps frame, compressing the gasket providing a floodtight/gastight fit.
- EPDM gasket and floodtight cam locks ensure door will not leak from standing water.
Additional Information
Door Size: 24 wide x 24 high
Material: Aluminum door frame
Lock/Latch: Type 316 stainless steel floodtight cam locks and flush floodtight handle
Flange: 3/8 aluminum with 3/16 x 1 1/2" strap anchors welded around the frame for casting into concrete"
Hinge: Type 316 stainless steel butt hinges with tamper proof stainless steel bolts and nuts
Finish: Mill finish with bituminous coating applied to exterior of frame
Gasketing: 9/16 O.D. x 1/8" I.D. EPDM gasket"
Load Rating: 1560 lbs/sqft
