Product Description
Acudor - CDSS60301212
12" x 12" Self-Stick Duct Panel - No Hinge - AcudorSheet metal ducts for commercial use connect your HVAC components throughout the building. These connections are vital for the system's maintenance and convenience when equipment needs to pass through. You'll need the right duct access door for the job, like the 12" x 12" CDSS-6030.
Benefits of Installing 12" x 12" CDSS-6030:
- Design for use in your HVAC ductworks
- Made from robust and durable materials
- It provides a convenient way for personnel to access vital locations for maintenance

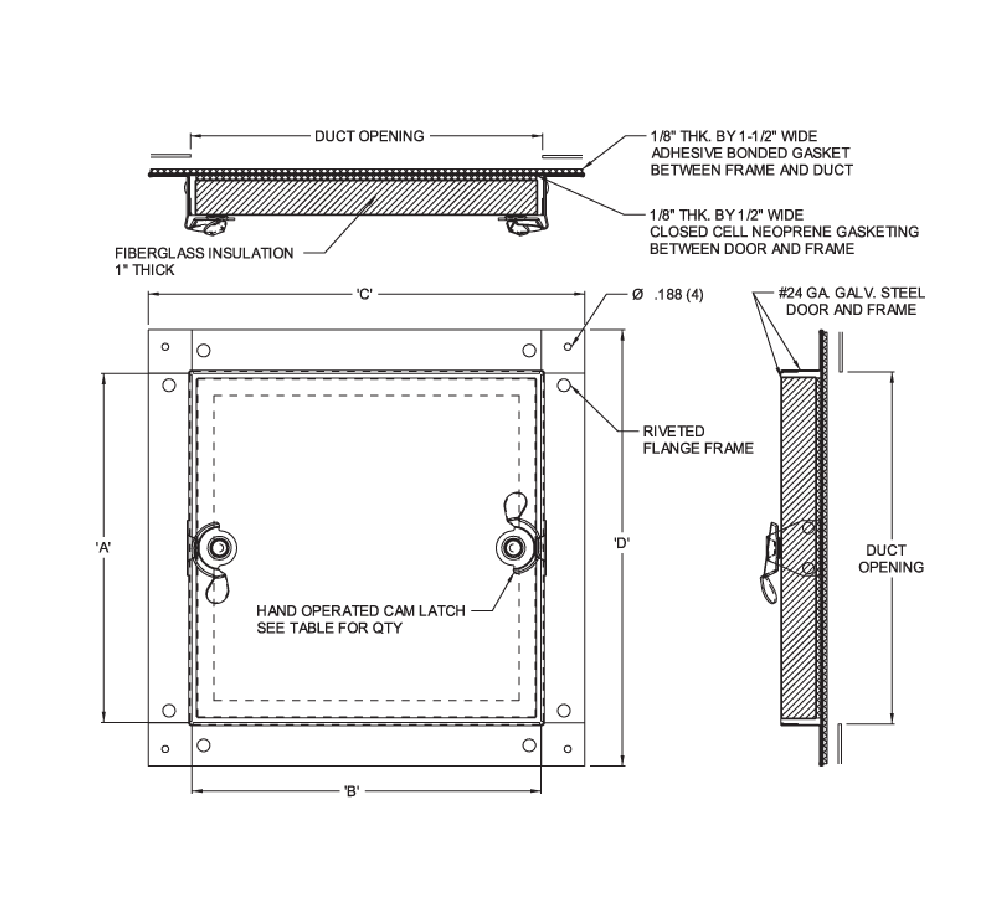

The 12" x 12" CDSS-6030's primary material for its door and frame is 24 gauge galvanized steel, which makes this product robust and resistant to corrosion damage. The door panel has 1" fiberglass insulation. The closed cell neoprene gasketing between the door and frame, which is 1/8" thick by 1/2" wide, provides a tight seal.
The gasket has a 1/8" thick by 1 1/2" wide adhesive that bonds it between the frame to the duct. It has a self-tightening, hand-operated cam latch with Hasp + Staple and L Handle for options with hardware of Hex head sheet metal screws.
12" x 12" CDSS-6030 Product Specifications:
- Door: 24 gauge galvanized steel, double panel
- Frame: 24 gauge galvanized steel
- Insulation: Door panel filled with 1" fiberglass insulation
- Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame. 1/8" thick by 1 1/2" wide adhesive bonded gasket between the frame to duct
- Latch: Self-tightening, hand-operated cam latches
- Hardware: Hex head sheet metal screws
- Optional Latches: Hasp + Staple, L Handle
