Acudor CDSS-6030 20" x 20" Self-Stick Duct Panel - No Hinge

Acudor CDSS-6030 20" x 20" Self-Stick Duct Panel - No Hinge

Dropship

Get it by Fri, Dec 13 - Wed, Dec 18

SKU SKU:kpi083-CDSS60302020

Regular price $87.41 USD
Regular price Sale price $87.41 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
manufacturer: Acudor
mpn: CDSS60302020

Product Description

Acudor - CDSS60302020

20" x 20" Self-Stick Duct Panel - No Hinge - Acudor

Sheet metal ducts for commercial use connect your HVAC components throughout the building. These connections are vital for the system's maintenance and convenience when equipment needs to pass through. You'll need the right duct access door for the job, like the 20" x 20" CDSS-6030.

Benefits of Installing 20" x 20" CDSS-6030:

  • Design for use in your HVAC ductworks
  • Made from robust and durable materials
  • It provides a convenient way for personnel to access vital locations for maintenance

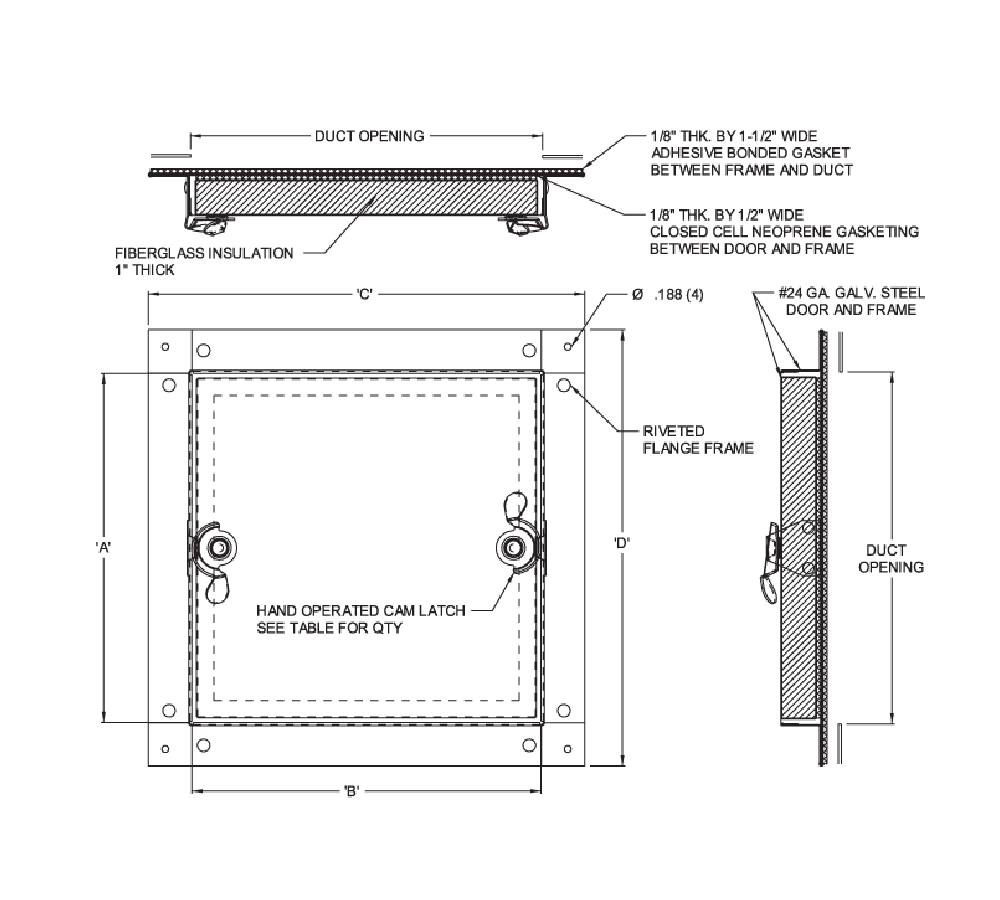

The 20" x 20" CDSS-6030's primary material for its door and frame is 24 gauge galvanized steel, which makes this product robust and resistant to corrosion damage. The door panel has 1" fiberglass insulation. The closed cell neoprene gasketing between the door and frame, which is 1/8" thick by 1/2" wide, provides a tight seal.

The gasket has a 1/8" thick by 1 1/2" wide adhesive that bonds it between the frame to the duct. It has a self-tightening, hand-operated cam latch with Hasp + Staple and L Handle for options with hardware of Hex head sheet metal screws.

20" x 20" CDSS-6030 Product Specifications:

  • Door: 24 gauge galvanized steel, double panel
  • Frame: 24 gauge galvanized steel
  • Insulation: Door panel filled with 1" fiberglass insulation
  • Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame. 1/8" thick by 1 1/2" wide adhesive bonded gasket between the frame to duct
  • Latch: Self-tightening, hand-operated cam latches
  • Hardware: Hex head sheet metal screws
  • Optional Latches: Hasp + Staple, L Handle
