category:
Fire-Rated Access Door
door_size:
22 wide x 36 high
manufacturer:
Acudor
mpn:
Z62236SCDW
Product Description

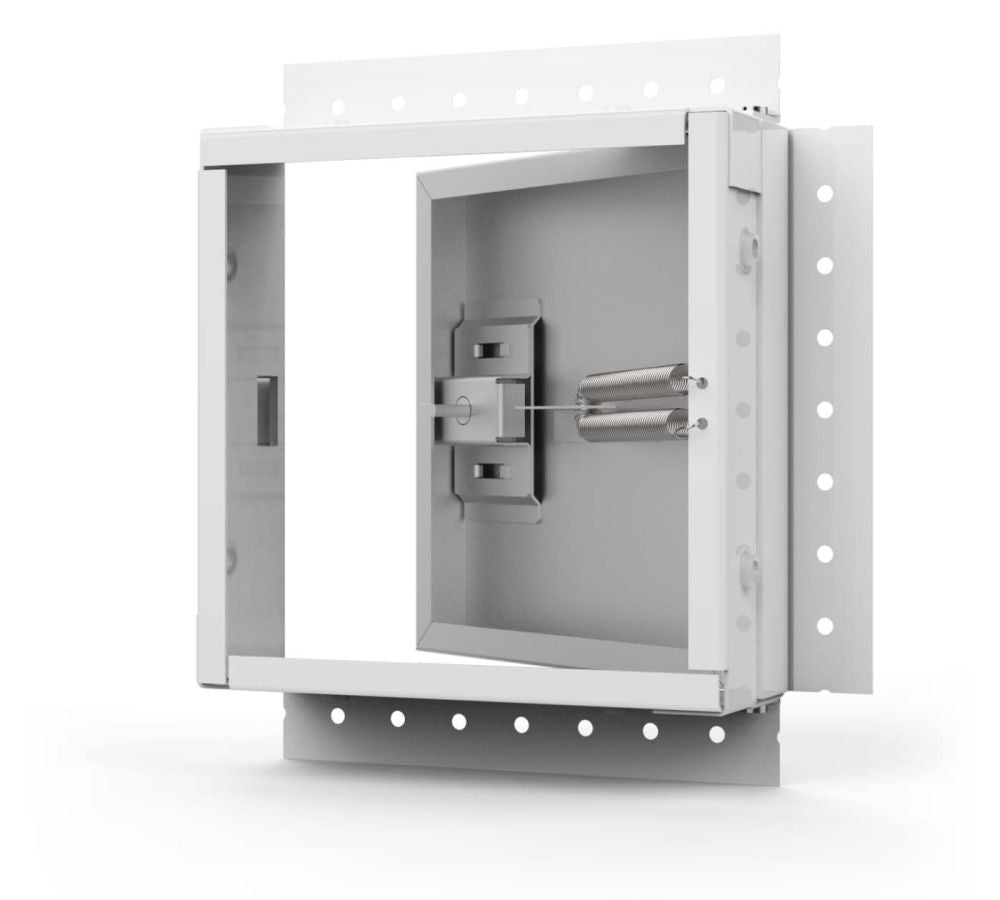

Acudor - Z62236SCDW 22" x 36" Fire Rated Un-Insulated Access Door with Flange for Drywall - AcudorThe FB-5060-DW drywall, fire rated access door is an enhanced FB-5060 that includes a galvanized steel drywall taping bead flange to facilitate installation in drywall. The Acudor FB-5060 is approved by Underwriters Laboratories (UL) for 1 1/2 hours "B" label in walls and ULC for 2 hours "B" label in walls. Designed to maintain continuity in a 2-hour fire barrier wall, the FB-5060 should be used whenever it is necessary to provide access in fire rated walls, when temperature rise is not a factor.
Additional Information
Door Size: 22 wide x 36 high
Rough Opening Size: 22 x 38
Material: 16 gauge steel
Lock/Latch: 1 x Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
Flange: Drywall taping bead flange
Hinge: Concealed pin hinge
Finish: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
