door_size:
30 wide x 30 high
manufacturer:
Acudor
mpn:
FCH203030
Product Description

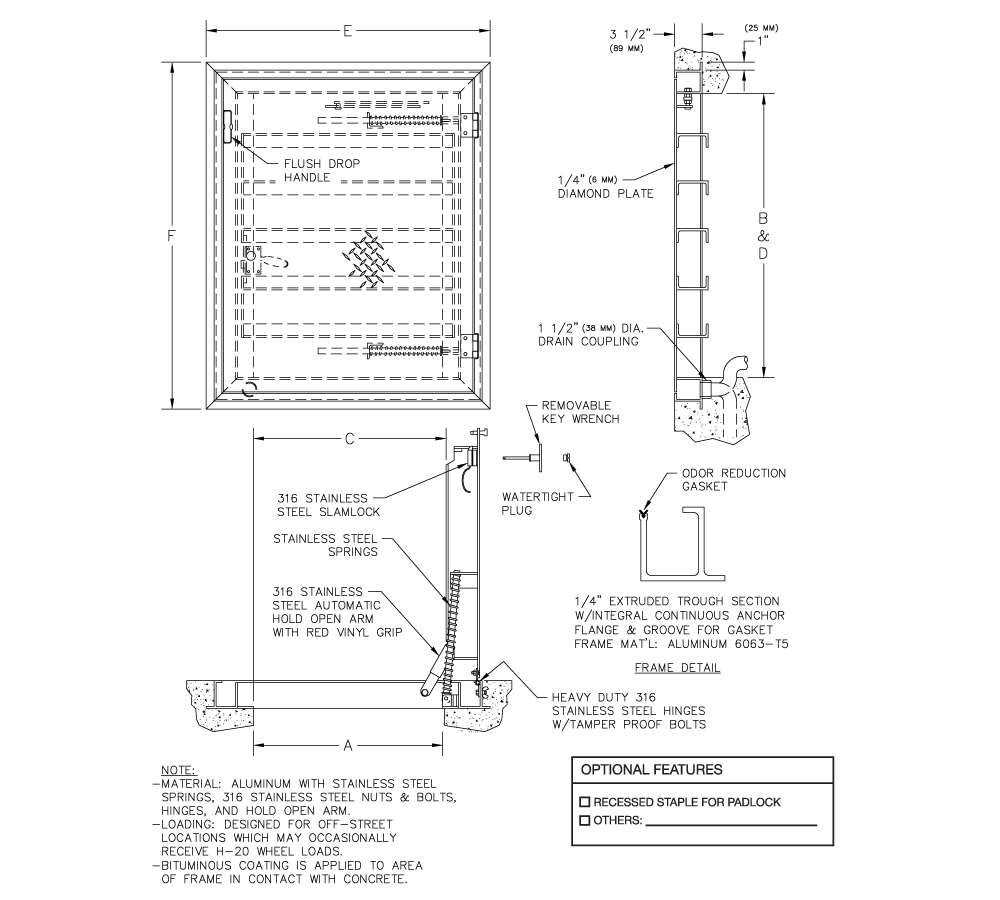

Acudor - FCH203030 30" x 30" Floor Door, Channel Frame, H20 Loading - AcudorThe FC series aluminum floor access doors are designed for interior and exterior applications where watertightness is required. The channel frame construction with 1 1/2" drainage coupling and integral anchor flange is designed to be cast into concrete. The diamond plate door panel is equipped with a flush aluminum drop handle and an automatic hold open arm with red vinyl grip.
Additional Information
Door Size: 30 wide x 30 high
Material: Aluminum door and frame
Lock/Latch: Flush aluminum drop handle with stainless steel slamlock
Flange: Channel frame fabricated from aluminum extrusion with 1 1/2 drainage coupling and integral 1 anchor flange
Hinge: Stainless steel butt hinges with tamperproof stainless steel bolts and nuts
Finish: Mill finish, with optional bituminous coating on exterior of frame
Load Rating: H20-44
