door_size:
30 wide x 36 high
manufacturer:
Acudor
mpn:
FRFD3036
Product Description
Acudor - FRFD3036 30" x 36" Fire Rated Floor Hatch - Acudor

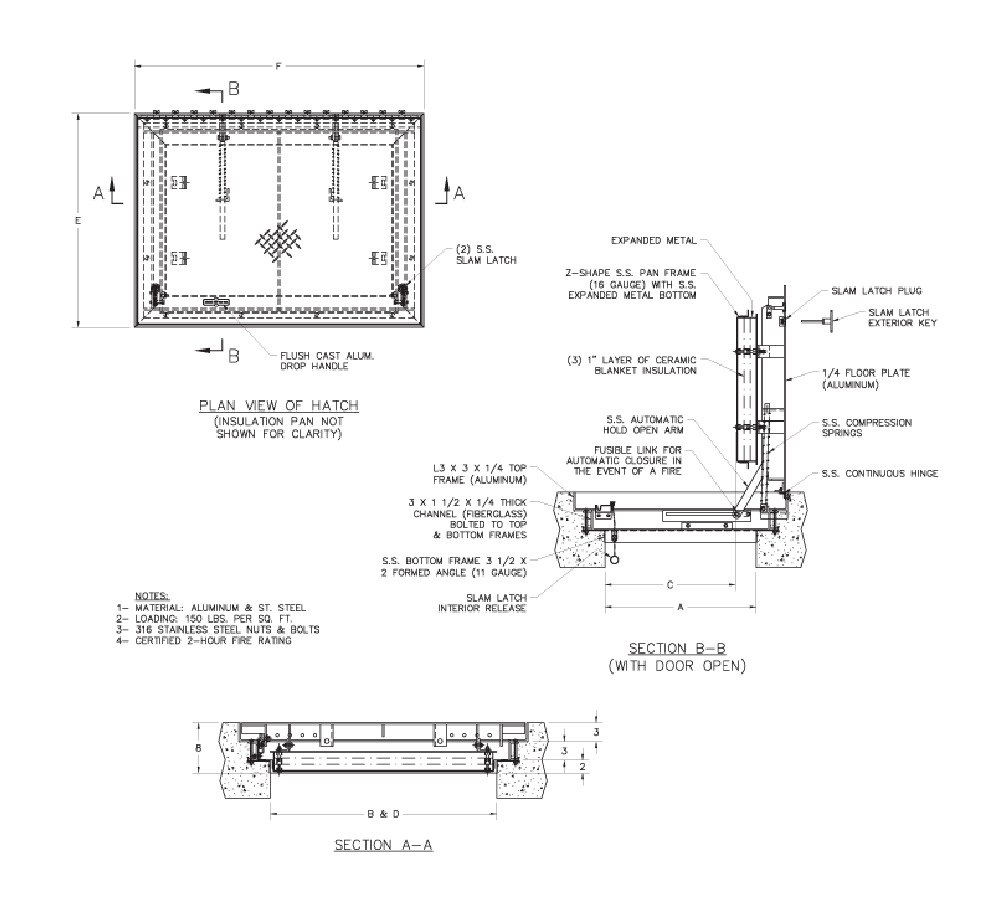

The FRFD series fire rated floor doors are designed to maintain the fire rating of a 2 hour floor ceiling assembly in interior applications. The angle frame construction with Anchor flange is designed to be cast into concrete. The flush aluminum diamond plate cover is provided with a U.L. listed 165 degree fusible link for automatic closing and latching in the event of smoke or fire.
Additional Information
Door Size: 30 wide x 36 high
Material: Aluminum door top frame
Lock/Latch: Stainless steel slam latch assembly with interior release
Flange: 3 x 3" x 1/4 aluminum top frame with thermal break 3 1/2" x 2" x 11 gauge stainless steel bottom frame"
Hinge: Type 316 stainless steel continuous piano hinge
Finish: Mill Finish
Fire Rating: 2 hour floor ceiling assembly
Load Rating: 150 lbs/sqft
