category:
Insulated Access Door
door_size:
24 wide x 36 high
manufacturer:
Acudor
mpn:
Z52436SCPC
Product Description

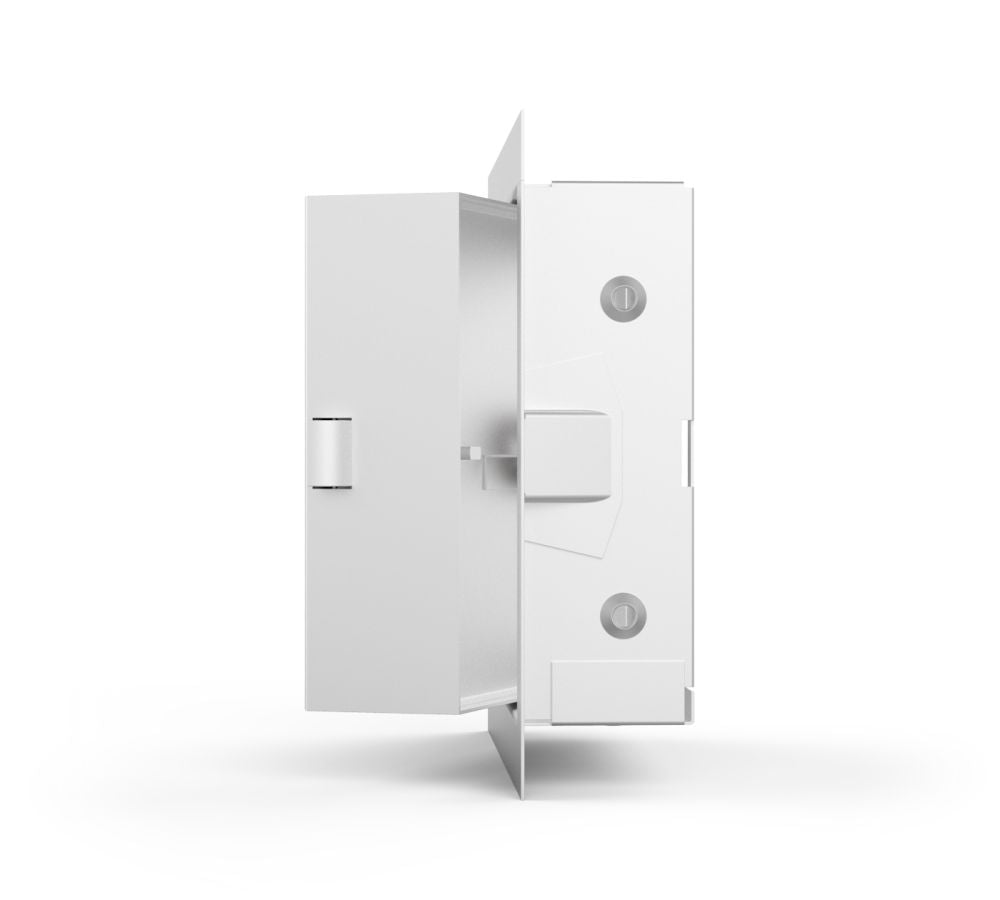

Acudor - Z52436SCPC 24" x 36" Fire Rated Insulated Recessed Door with Flange - AcudorThe FW-5050 is an insulated, fire rated access door approved for use in walls and ceilings. For walls, this door has an Underwriters Laboratories (UL and ULC), 1-1/2 hour "B" label, with a maximum temperature rise of 250 degrees after 30 minutes. This door should be used in walls when temperature rise or heat transmission is a factor. For fire rated ceilings, this door has been approved by Warnock Hersey International for 3 hours (max. size to 24" x 36")
Additional Information
Door Size: 24 wide x 36 high
Rough Opening Size: 24 x 38
Material: 20 gage door,16 gage mounting frame
360spin: FW-5050
Lock/Latch: 2 x Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
Flange: 1 flange
Hinge: Concealed pin hinge
Finish: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
Fire Rating: UL 1-1/2 hour B label. ULC " 2 hour B label"
