Acudor - HD5070F2020

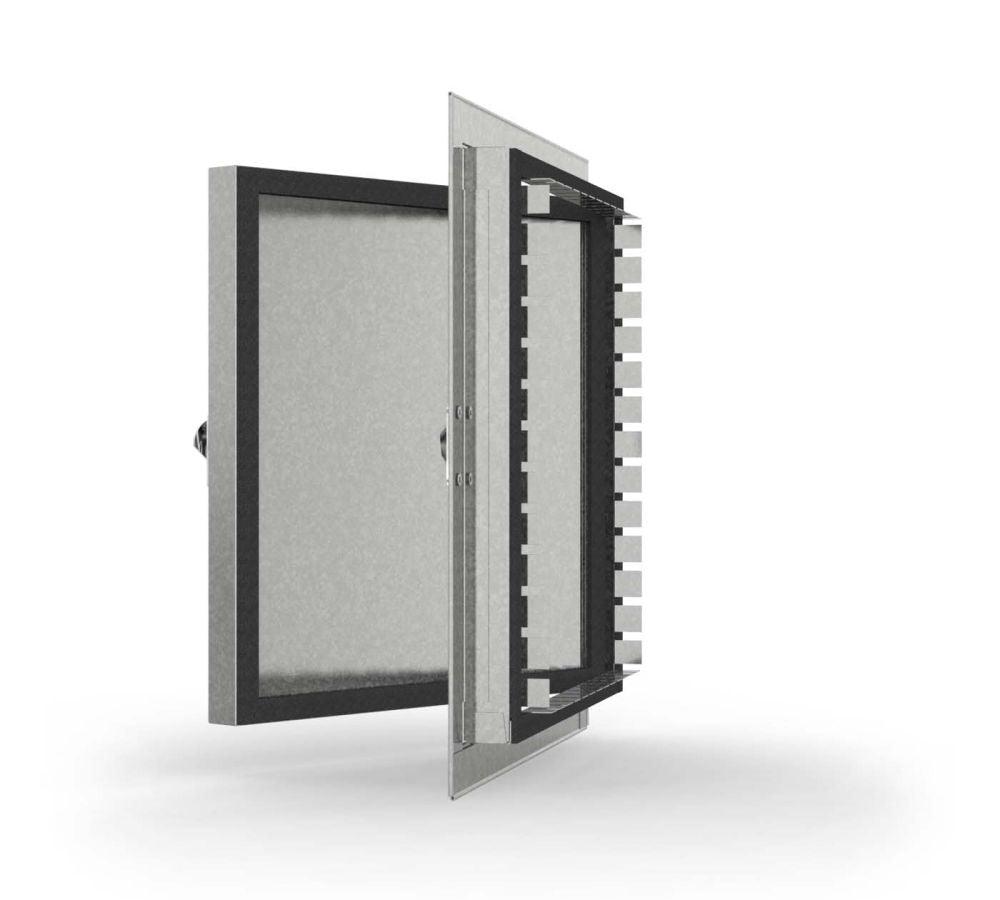

20” x 20” Duct Panel for Fiberglass Ducts - AcudorEvery duct system needs an entry point for duct technicians to access during repair or maintenance procedures. If you want a more efficient and safer way of permitting access to your duct areas, consider installing the 20 X 20 HD-5070-F, a reliable hinged duct access door for fiberglass and duct board ducts.
Benefits of Installing the 20 X 20 HD-5070-F:
- Provide accessible entryway to duct systems
- Assures an obstruction-free, airtight seal in the air system
The HD-5070-F duct door has a simple design that's easy for any contractor or technician to install on their own. You'll notice that manufacturers used galvanized double panel steel material to achieve durability once installed on duct systems. They also used a 24 gauge door and 24 gauge mounting frame with 5/8" notched knock-over tabs for the entire duct door.
You can also find a 1/8" thick by 1/2" wide closed cell neoprene gasket between the door and the frame and also between the frame and the duct. The gasket ensures a tight seal whenever duct systems operate at high pressures.
The third feature of this product is its continuous aluminum piano hinge that creates a seamless appearance. The door panel comprises a 2" fiberglass insulation (7.7 R factor), compressed into 1", and comes standard in a self-tightening, hand-operated cam latch.
20 X 20 HD-5070-F Product Specifications:
- Material: Galvanized steel, double panel
- Door: 24 gauge
- Mounting Frame: 24 gauge with 5/8" notched knock-over tabs
- Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasket between door and frame and also between frame and duct
- Hinge: Continuous aluminum piano hinge
- Insulation: Door panel filled with 2" fiberglass insulation (7.7 R factor), compressed into 1."
- Latch: Self-tightening, hand-operated cam latch
