category:
Thermostatic Expansion Valves
manufacturer:
White Rodgers
mpn:
054231
subcategory:
AFA Series Valves
Product Description

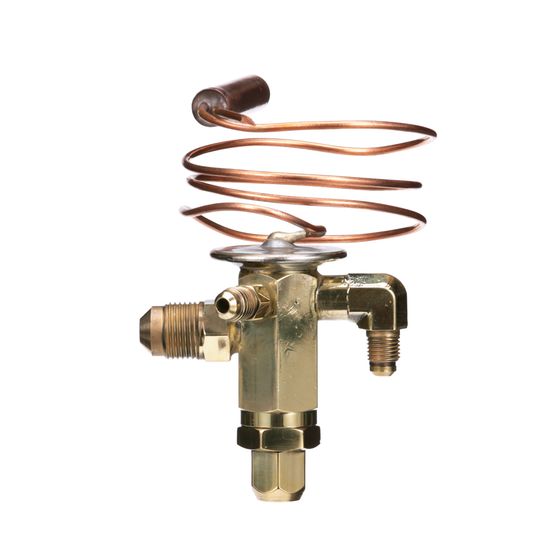

White Rodgers - 054231 The AFA Series is designed for air conditioning and commercial refrigeration applications requiring angle configuration SAE connections. The AFA is ideal for those applications requiring compact size combined with stable and accurate control over wide load and evaporator temperature ranges.
Features:
- Stainless steel power element eliminates corrosion and prevents valve failure
- External superheat adjustment
- Replaceable inlet strainer
- SAE connections only
- Wrench flats on inlet and outlet
Additional Information
Length5 ft. Capillary
Inlet Connection Size3/8 SAE Flare
Outlet Connection Size3/8-1/2 SAE Flare
Maximum Working Pressure700 psig
Refrigerant CodeH (R-22, Interchangeable with R-407C)
Charge CodeC (Medium Temp)
Adjustable SuperheatYes
EqualizerInternal
Body DesignAngle (90°)
