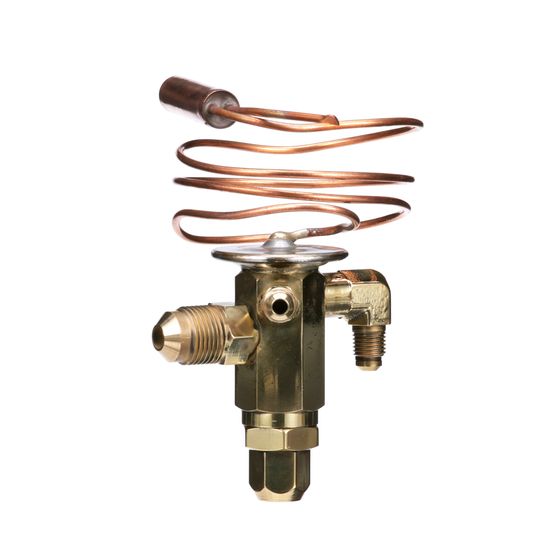

White Rodgers - 061906 The AFA Series is designed for air conditioning and commercial refrigeration applications requiring angle configuration SAE connections. The AFA is ideal for those applications requiring compact size combined with stable and accurate control over wide load and evaporator temperature ranges.
Features:
- Stainless steel power element eliminates corrosion and prevents valve failure
- External superheat adjustment
- Replaceable inlet strainer
- SAE connections only
- Wrench flats on inlet and outlet
Additional Information
Length30 In. Capillary
Inlet Connection Size3/8 SAE Flare
Outlet Connection Size3/8-1/2 SAE Flare
Maximum Working Pressure700 psig
Refrigerant CodeM (R-134a, Interchangeable with R-12)
Charge CodeC (Medium Temp)
Adjustable SuperheatYes
EqualizerExternal
Body DesignAngle (90°)
CategoryThermostatic Expansion Valves
ManufacturerWhite Rodgers
Mpn061906
SubcategoryAFA Series Valves
