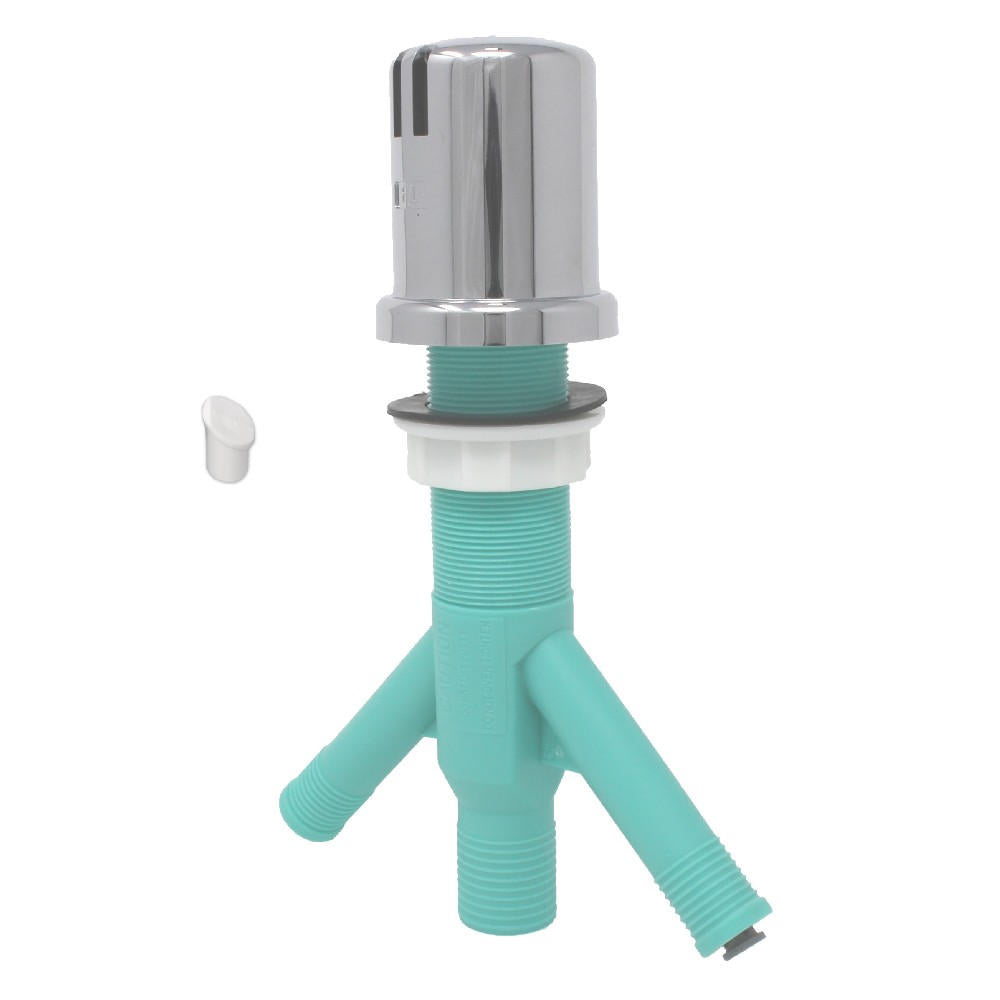

Airgap AG200-007 Dual Air Gap for Dishwasher and Tankless Reverse Osmosis Filter and Extra Long Thread

Product Description

Airgap - AG200-007 A dishwasher air gap is a critical component in maintaining a safe water supply. It prevents contaminants in the sink from flowing into the dishwasher and is required by code in most states. The AMERIGAP brand dishwasher air gap provides many advantages over other air gaps available on the market and ensures safety and peace of mind that your water supply is clean.

The AG200-007™s maximum flow rate is 12 gallons per minute (GPM). The maximum flow rate of the 1/4-inch port for the tankless reverse osmosis (RO) filter is 2.5 GPM. The maximum flow rate through this air gap is the highest flow rate above which the air gap will overflow. At maximum flow rate, the air gap is dry on the outside.

A common misconception is that a high loop (routing a drain line above a sink™s flood level, for instance) and a wye connection will provide the same function as an air gap; this is not true, because the continuous connection between dishwasher and drain line still will allow back-flow through siphoning.

This air gap is easy to install, easy to use, and easy to maintain. The AG200-007 air gap is listed by UPC® and tested for compliance with IPC® and NSF® standards.

Features

• FLOW RATE: The AG200-007™s maximum flow rate is 12 gallons per minute (GPM). However, the maximum flow rate of the 1/4-inch port for the tankless reverse osmosis (RO) filter alone is 2.5 GPM. The maximum flow rate through this air gap is the highest flow rate above which the air gap will overflow. At maximum flow rate, the air gap is dry on the outside.
• INLET PORTS: The AG200-007 accepts a standard 5/8-inch inside diameter hose from a dishwasher and a 1/4-inch outside diameter tubing from a tankless Reverse Osmosis filter. The hose from the dishwasher slides onto the side port and is secured using stainless worm clamps (not included). The tankless RO tubing connects to a push-in quick-connect adapter. Make sure there are no kinks in the hose and that water passes freely. This air gap is compatible with all dishwashers and tankless RO filters.
• OUTLET PORTS: The drainage side of the air gap connects to a 7/8-inch inside diameter hose, which routes discharge water to the side drain connection on the garbage disposal. This hose is available from Home Depot (search for PVC Disposal Discharge Hose). When installing this hose, make sure that there is no sagging or loops. Any sagging will create standing water and will restrict the proper draining of the air gap. Secure both ends of the hose with a 1-inch stainless steel worm clamp.
• THREADED BODY: The AG200-007 has a body with a thread that enables air gap mounting through a standard countertop. Countertop thickness can be up to 2-1/2-inches, and it does not require any special modification to accommodate this air gap. The body of the air gap made from extra durable plastic to resists bending or deforming.
• MOUNTING NUT: The AG200-007 has a durable mounting nut that will not strip or become loose. The multi-threaded nut can be tightened without the worry of damaging threads. This configuration provides a simple and reliable installation that prevents leaks and assures trouble-free operation after the air gap is installed.
• DECORATIVE CAP: The AG200-007 comes with a standard polished chrome cap. Other caps are available to match with your kitchen sink faucet. Select the cap that is closest to the color of the faucet. Caps are sold separately.
• COMPATIBILITY: Our reverse osmosis air gaps such as the AG200-007 are not compatible with reverse osmosis faucets with air gap.
