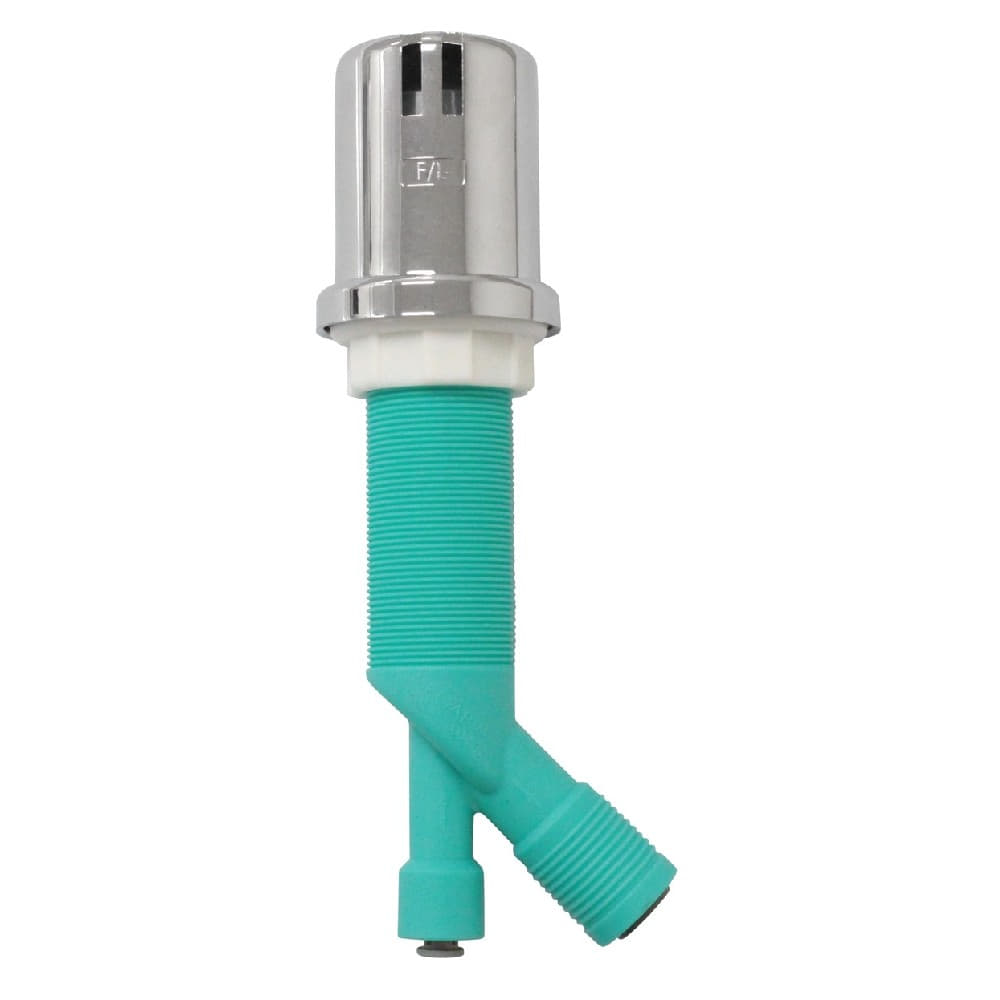

Airgap AG200-009 Reverse Osmosis Air Gap, with 1/4-inch Push-in Inlet and 3/8-inch Push-in Outlet (For All Reverse Osmosis Filters)

Product Description

Airgap - AG200-009 A reverse osmosis air gap is a critical component in maintaining a safe water supply. It prevents contaminants in the sink from flowing into the clean water supply and is required by code in most states.

The AG200-009™s maximum flow rate is 0.8 gallons per minute (GPM). The maximum flow rate through this air gap is the highest flow rate above which the air gap will overflow. At maximum flow rate, the air gap is dry on the outside.

The AMERIGAP brand reverse osmosis air gap provides a 1/4-inch push-in quick connect inlet that accommodates both with tank and tankless reverse osmosis filters. It also provides a 3/8-inch push-in quick connect outlet to drain RO filter.

This air gap is easy to install, easy to use, and easy to maintain. The AG200-009 air gap is listed by UPC® and tested for compliance with IPC® and NSF® standards.

Features

• FLOW RATE: The AG200-009™s maximum flow rate is 0.8 gallons per minute (GPM). The maximum flow rate through this air gap is the highest flow rate above which the air gap will overflow. At maximum flow rate, the air gap is dry on the outside.
• INLET PORTS: The AG200-009 accepts a standard 1/4-inch outside diameter tubing from Reverses Osmosis filter (with or without tank). The RO tubing connects to a push-in quick-connect adapter. This air gap is compatible with all RO filters.
• OUTLET PORTS: The drainage side of the air gap connects to a 3/8-inch outside diameter tubing, which routes discharge water to the side drain connection on the garbage disposal above P-trap. The discharge tubing connects to a push-in quick-connect adapter.
• THREADED BODY: The AG200-009 has a body with a thread that enables air gap mounting through a standard countertop. The air gap™s diameter is 1-1/4 inches. Countertop thickness can be up to 2-1/2-inches, and it does not require any special modification to accommodate this air gap. The body of the air gap is made from durable plastic to resist bending or deforming.
• DECORATIVE CAP: The AG200-009 comes with a standard polished chrome cap.
• COMPATIBILITY: Our reverse osmosis air gaps such as the AG200-009 are not compatible with reverse osmosis faucets with air gap.
