Product Overview

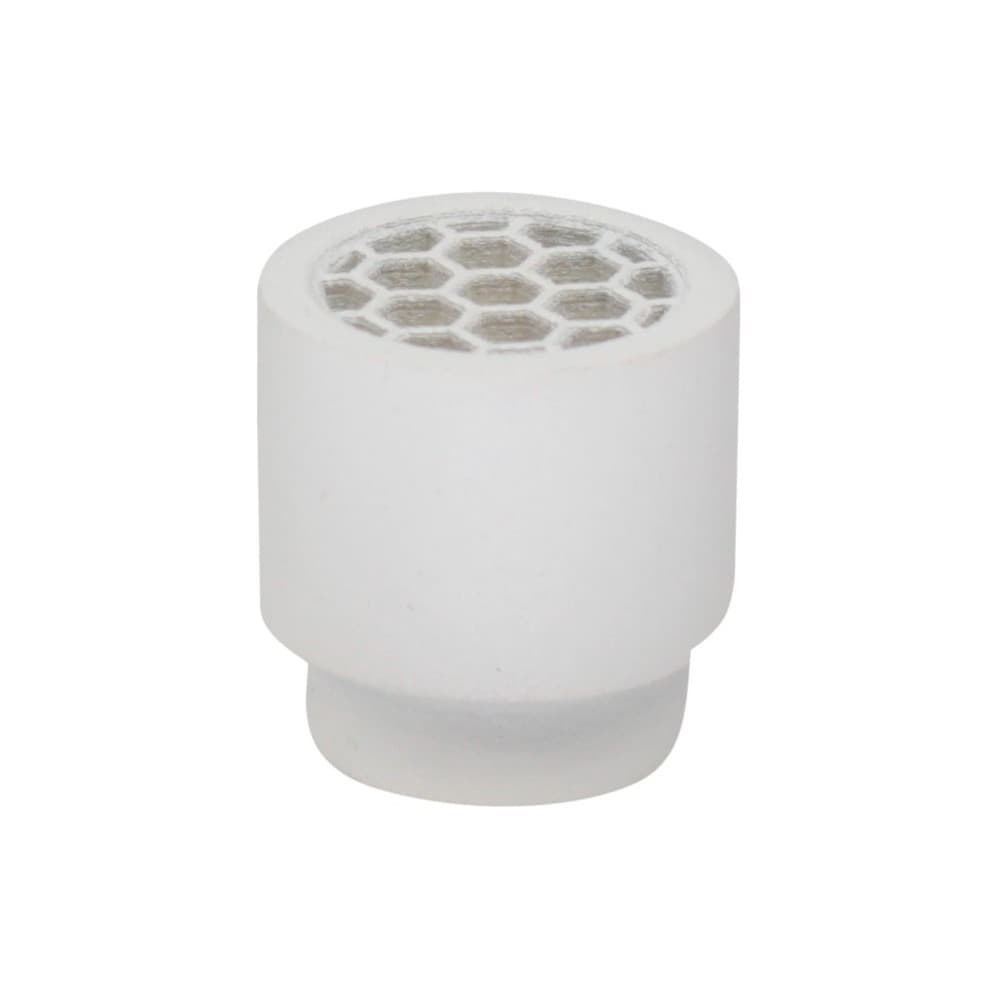

The ET170-025 insert converts turbulent water flow to laminar water flow. It is designed to eliminate water splashing from the ET115-001 air gap at low and high water flow rates. The ET170-025 eliminates water splashes from the air gap by aligning water streams through multiple hexagonal openings to create laminar flow.
The insert is 3/4 inch long and slips into the ET115-001 air gap intake port. It has 19 honeycomb openings to direct incoming water into a single laminar flow stream. The inlet measures 5/8 inch, and the outlet measures 1/2 inch in diameter.
The ET170-025 slips into the ET115-001 air gap™s 1/2-inch threaded inlet and is secured by threaded quick connect, straight or right-angle adapters. Threaded adapters, from ET170-001 to ET170-008, and ET170-017, can be installed in the air gap, while the ET170-025 inserts are inside the air gap.
Features
- DESIGN: The ET170-025 insert converts turbulent water flow to laminar water flow. It is designed to eliminate water splashing from the ET115-001 air gap at low and high water flow rates.
- PERFORMANCE: The ET170-025 eliminates water splashes from the air gap by aligning water streams through multiple hexagonal openings to create laminar flow.
- INLET: The ET170-025 is designed with a 5/8 inch diameter honeycomb inlet.
- OUTLET: The ET170-025 is designed with a 1/2 inch diameter honeycomb outlet.
- MATERIAL: The ET170-025™s body is made of white polypropylene material.
- COMPATIBILITY: The ET170-025 is used for the ET115-001 air gap
