category:
LED Tubes & Lamps
country_of_origin:
US
data_sheet:
https://www.aleddra.com/spec/CutSheet-U-bend-T8.pdf
manufacturer:
Aleddra
mpn:
PV-1UB-15WAB3M-40K
sub_category:
T8 Style
Data Sheet Product Description

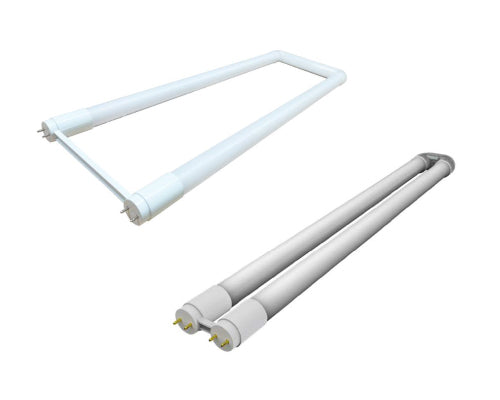

Aleddra - PV-1UB-15WAB3M-40K (Type A+B, Ballast Bypass)
Aleddra’s New U-bend T8 tube is a smart choice for retrofitting existing fluorescent U-bend T8’s with an energy efficient replacement without taking the costly alternative of complete fixture upgrades. The U-bend tube is compatible for both direct ballast and bypass applications.
Listings And Certifications
- UL Listed
- DLC listed (6” spacing U-bend models)
- NSF certified
Features
- Support Type A configuration with Instant Start ballast
- Support Type B configuration (ballast bypass) with single-end and double-end wiring
- Support dimming via dimmable ballast or external dimming module (from Aleddra)
- Current leakage protection, passed UL1993 new standard
- Reduces energy consumption up to 60%
- Shatterproof design: meets NSF requirements
Additional Information
Wattage15W
Color Temperature3500K, 4000K, 5000K
Luminous Efficacy> 130 LPW
Input Voltage120-277Vac, 50/60hz
Operating Temperature-20ºF to 122ºF
Lens TypeFrosted
Power Factor> 0.9
CRI>80
Operating Temp.- 4ºF to 104ºF
Light Output1950lm
Rated Life50,000 hours
Warranty5-year
DimmingDimmable
