category:
Scanners
height:
27.5 cm
length:
57 cm
mpn:
HD3600
subcategory:
Truck & Equipment Diagnostic Scanner
weight:
19.5 kg
width:
46 cm
Product Description

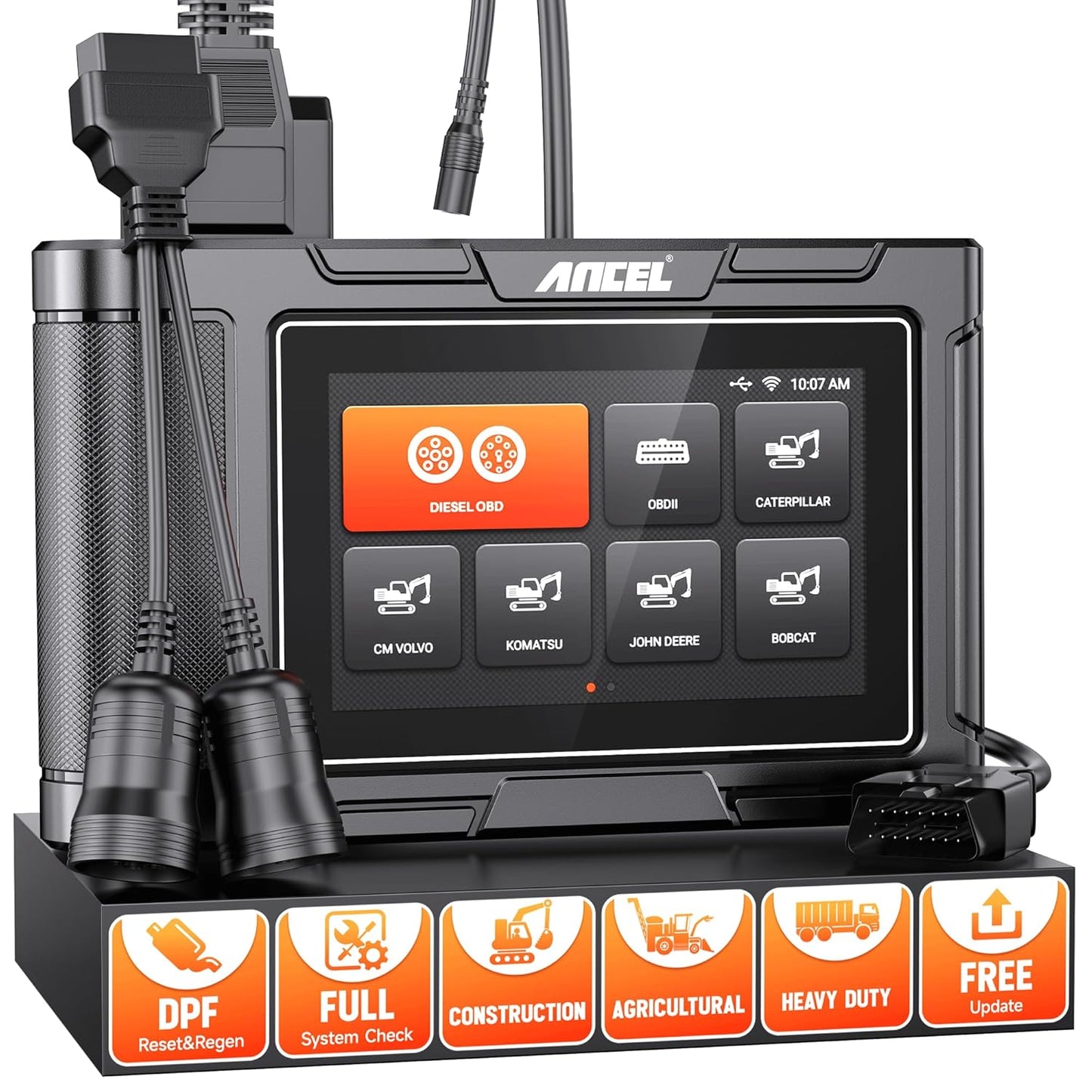

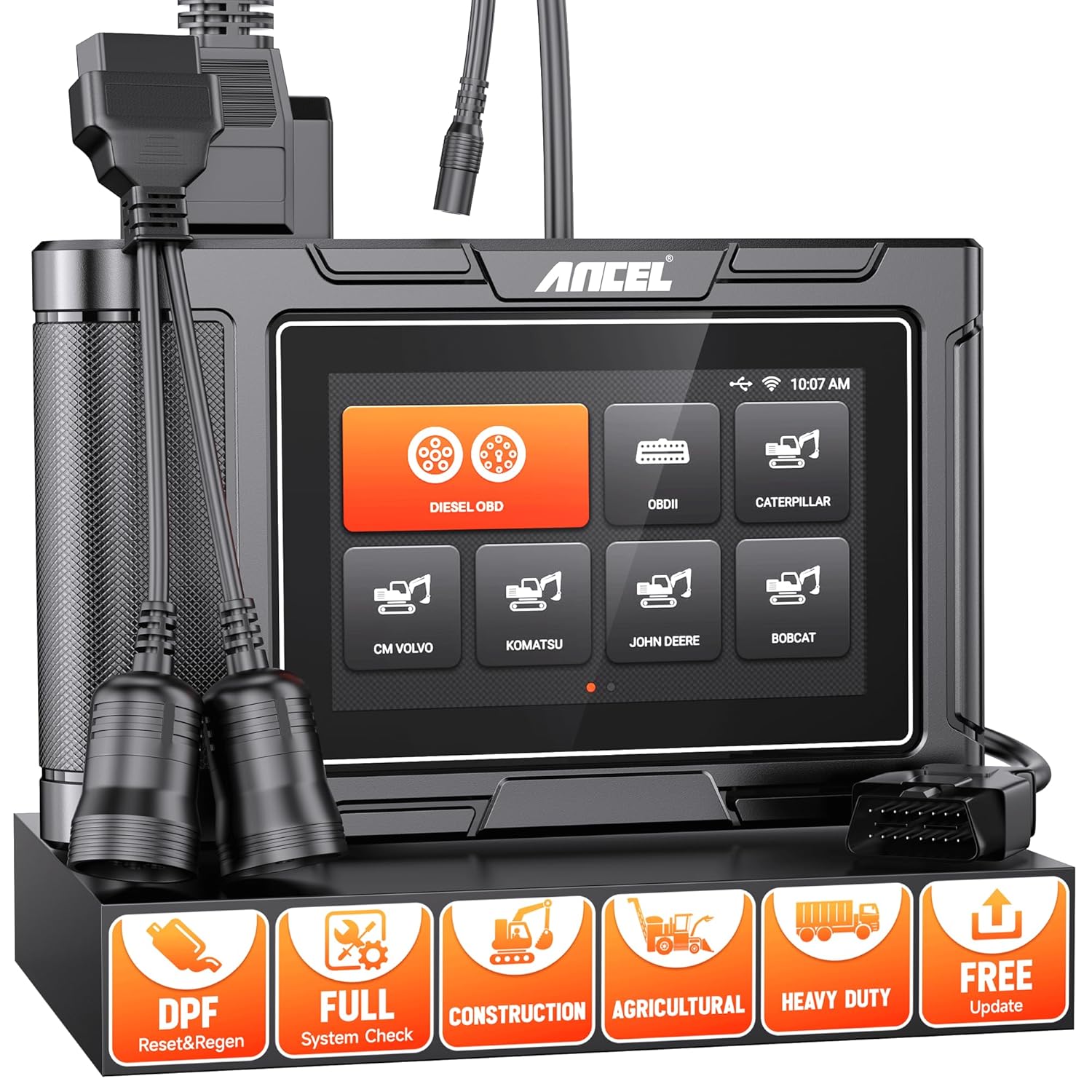

The ANCEL HD3600 is a powerful heavy-duty diagnostic scanner designed for **both construction machinery and commercial diesel trucks** such as Caterpillar, Komatsu, John Deere, Volvo, Bobcat and more. It delivers OEM-level all-system diagnostics for engine, transmission, ABS/EBS, body/chassis controllers and other modules, while also supporting standard OBDII diagnostics. The built-in Android-based 5″ touchscreen makes operation intuitive and efficient.
Key Features

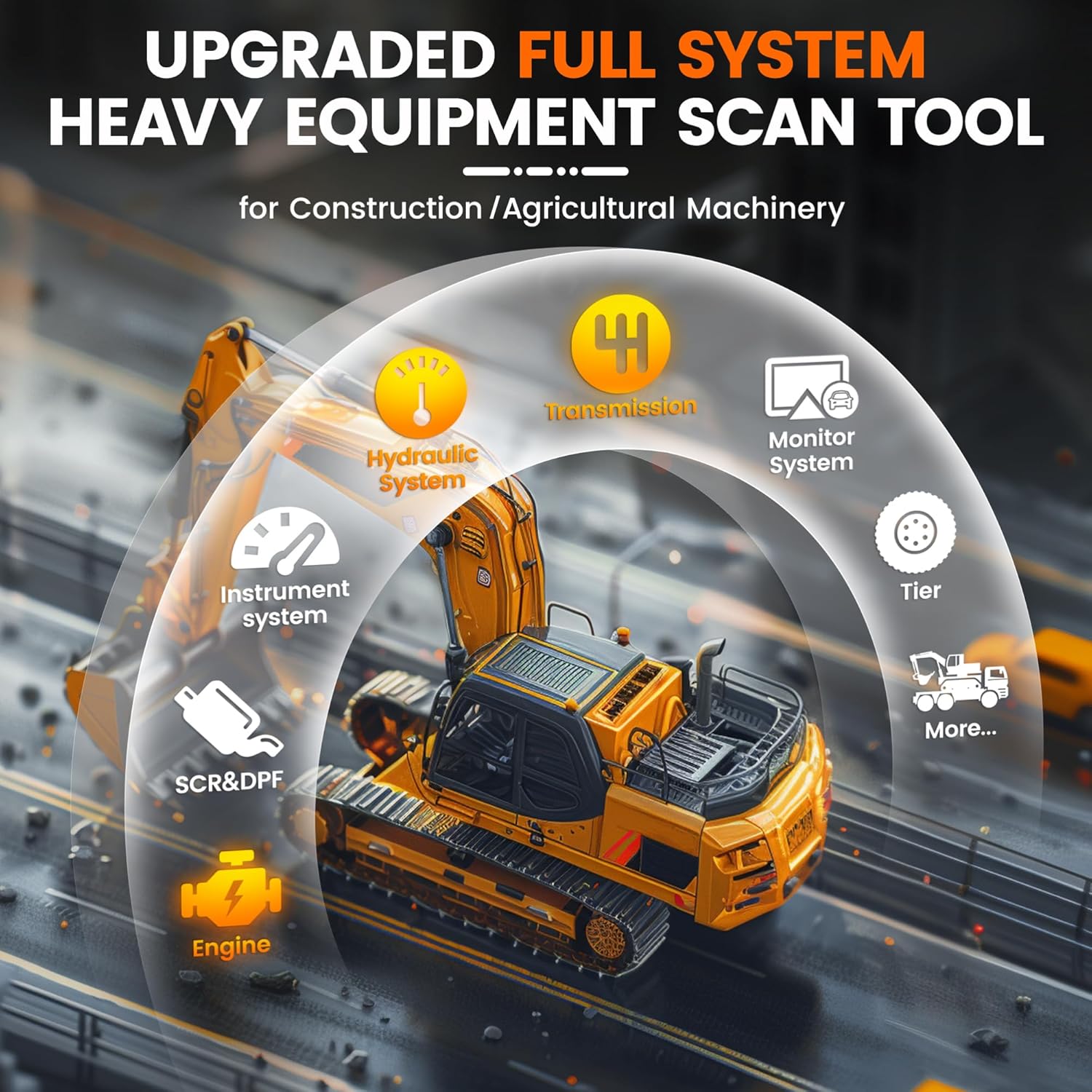

- Full system diagnostics for heavy duty trucks & construction equipment, covering engine, transmission, ABS/EBS, body controllers and more.

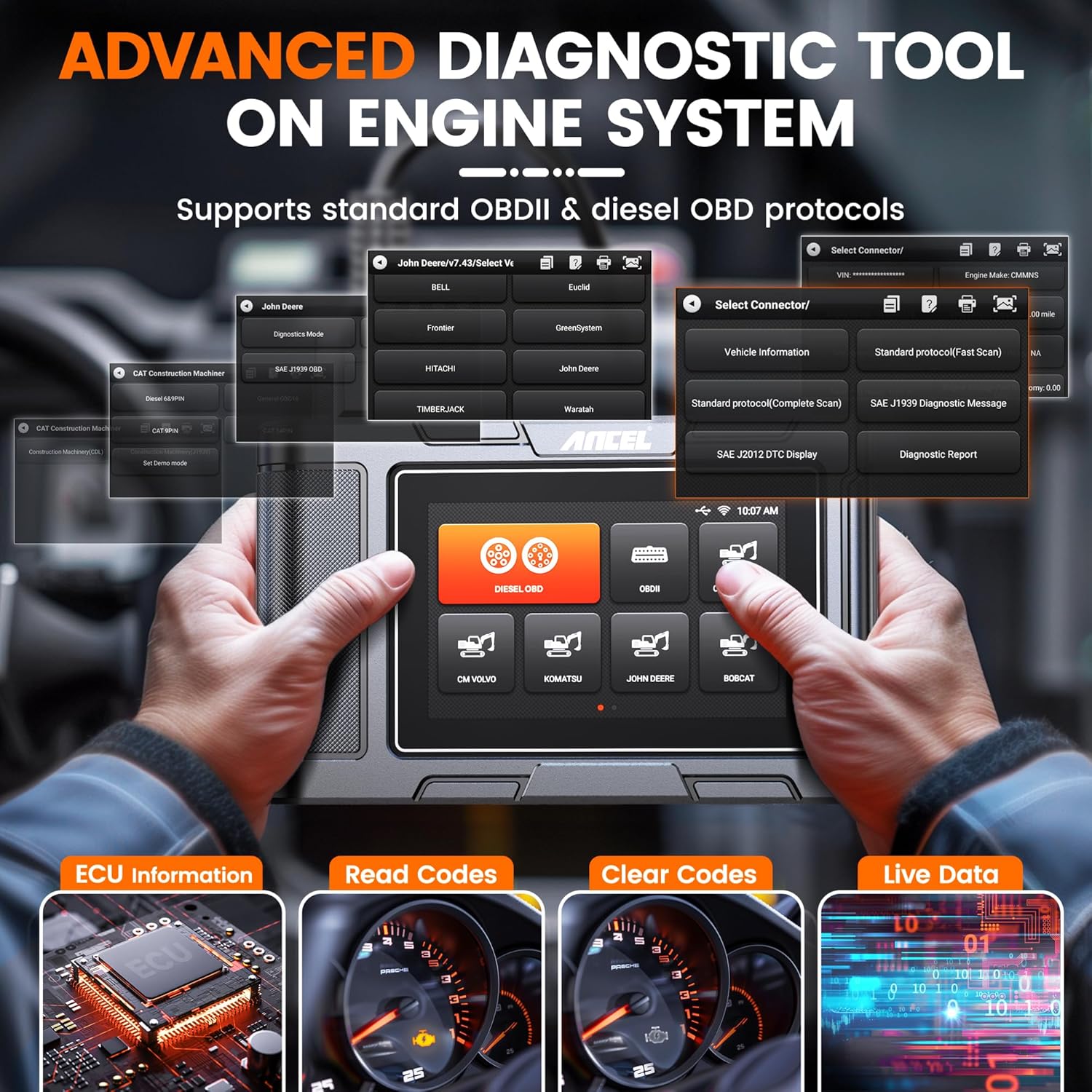

- Comprehensive vehicle diagnostics — read/clear codes, live data, freeze frame and VIN info.

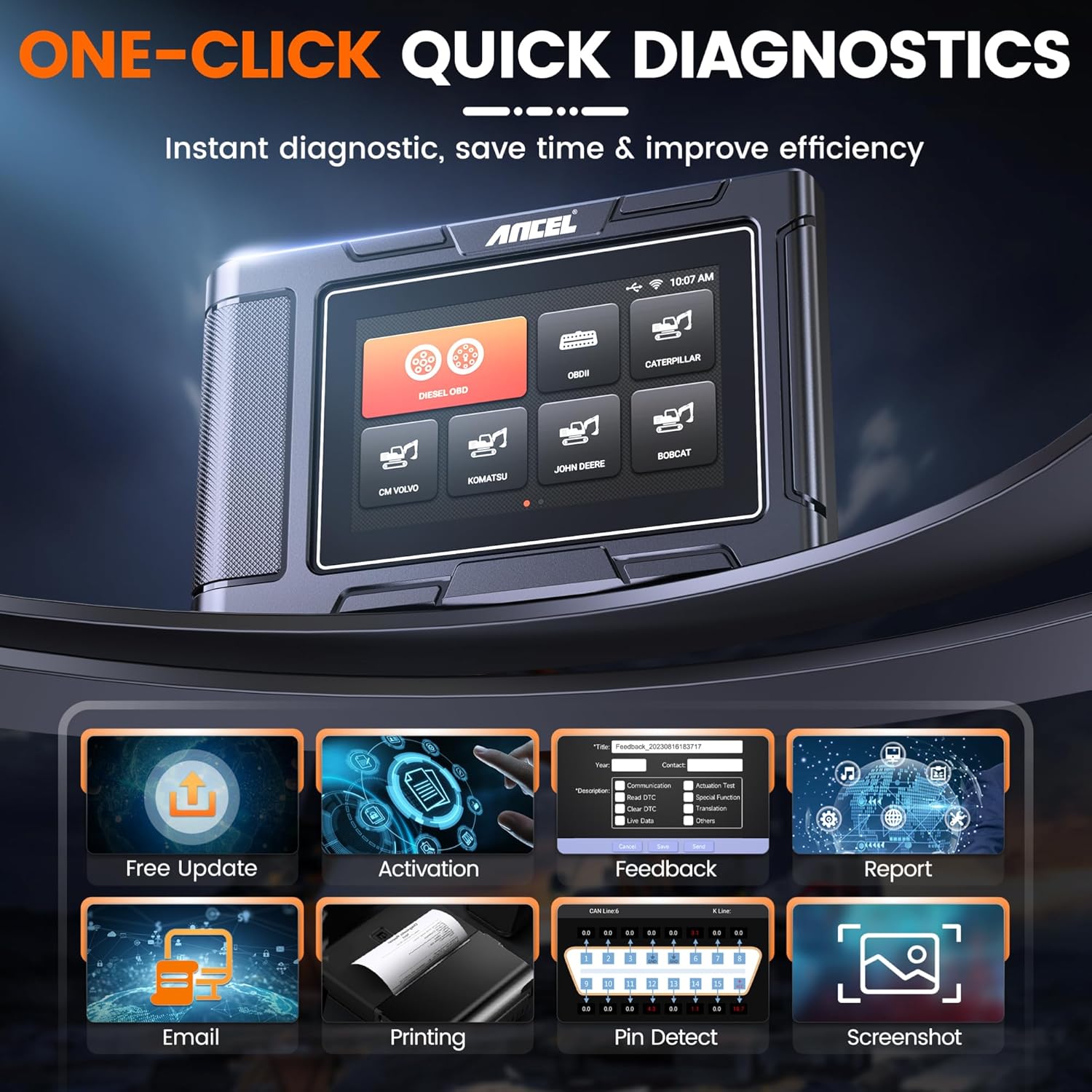

- One-click functions for **software updates**, **screenshots** and **feedback/reporting**.
- Unique **wiring diagram display** to help diagnose electrical signals and connections.
Specifications
| Model | HD3600 Heavy Duty Diagnostic Scanner |
|---|---|
| Display | 5″ Android-based touchscreen LCD |
| Diagnostic Coverage | Heavy duty trucks & construction machinery (engine, transmission, ABS/EBS, body/chassis systems) |
| OBD Protocols | SAE J1939, SAE J1708, J1850 PWM/VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4, ISO 27145-4 |
| Connectivity | Wi-Fi wireless updates |
| Software Updates | Lifetime free updates :contentReference[ |

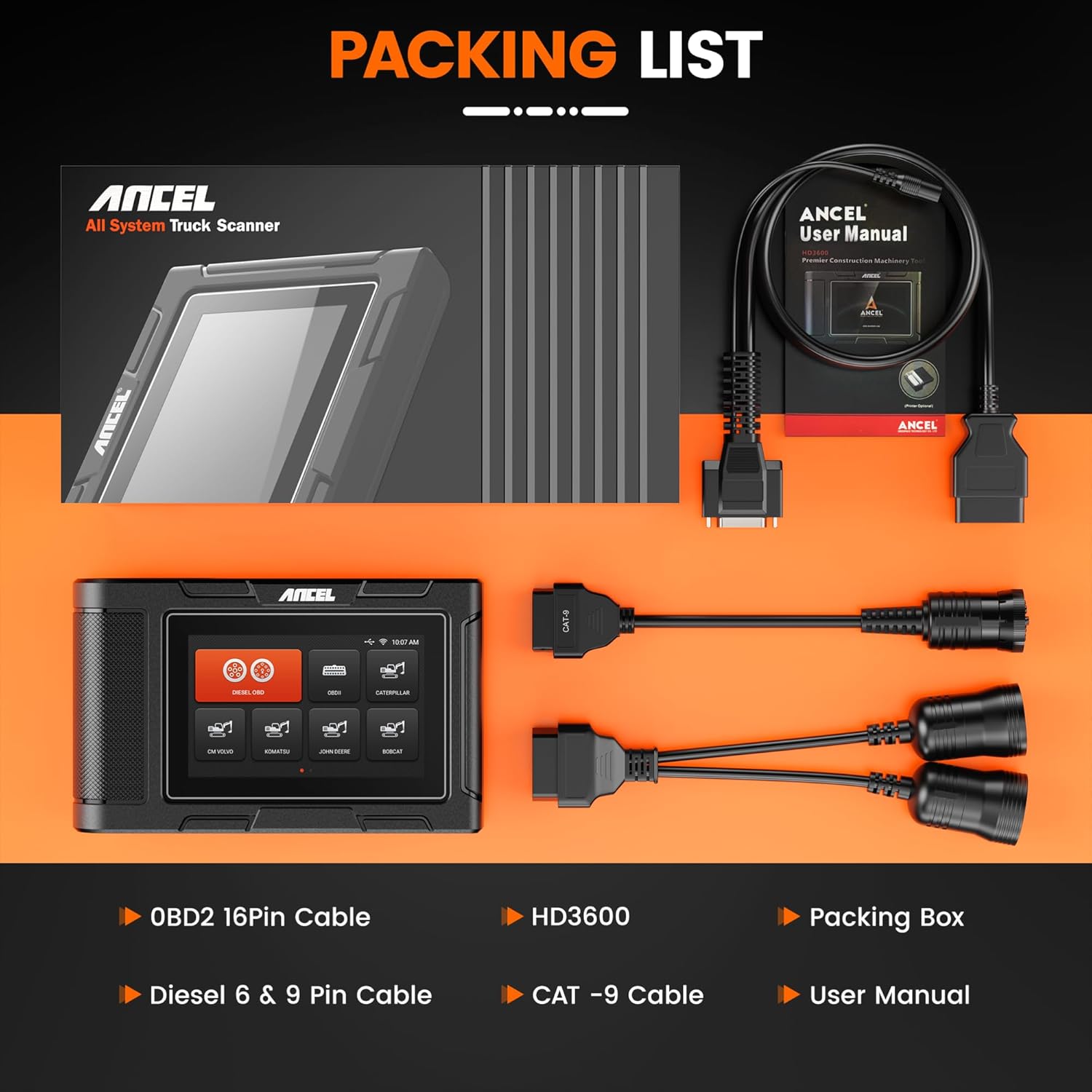

Package Includes
- HD3600 Diagnostic Scanner Unit
- OBDII 16-Pin Cable
- Diesel 6-Pin & 9-Pin Connectors
- CAT-9 Connector Cable
- User Manual
- Carton Box
