Product Description

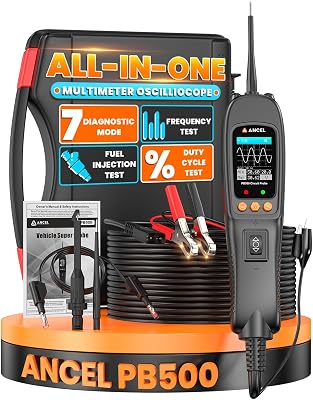

The PB500 is a professional automotive power circuit tester designed for comprehensive electrical system diagnostics on 8V–30V vehicles. Featuring a full-color TFT display and multiple test modes, it allows mechanics and DIY technicians to accurately measure voltage, frequency, duty cycle, resistance, fuel injection circuit performance and more. Ideal for electrical troubleshooting, component testing and circuit analysis across cars, trucks, motorcycles and light commercial vehicles.
With support for both DC and AC voltage tests, fuel injection detection, frequency/duty diagnostics, and resistance/diode checks, this advanced tester provides fast, reliable results. The intuitive color display and English language interface make it easy to use in any workshop or roadside setting.
Key Features
- TFT color display (160 × 128 dpi) for clear readings
- Wide supply voltage range: 8V–30V DC
- DC and AC voltage measurement up to ±110V
- Fuel injection circuit testing (voltage & pulse timing)
- Frequency and duty cycle detection
- Resistance and diode test modes
- Compact, rugged design for workshop and field use
- English language interface with lifetime free updates
Specifications
| Model No. | PB500 |
|---|---|
| Display | TFT color display (160 × 128 dpi) |
| Operating Temperature | -10°C ~ +60°C (14°F ~ 140°F) |
| Ambient Humidity Range | -20°C ~ +70°C (-4°F ~ 158°F) |
| Supply Voltage | 8V DC ~ 30V DC |
| DC/AC Voltage Test | -110V ~ 110V |
| Fuel Injection Voltage | 0 ~ 180V |
| Fuel Injection Time | 0 ~ 25 ms |
| Languages Supported | English |
| Free Updates | Lifetime |
| MOQ | 1 PCS |
| Carton Size | 53 × 32 × 48 cm |
| Gross Weight (G.W.) | 21 kg |
Test Functions
- DC Voltage Measurement
- AC Voltage Measurement
- Frequency Detection
- Duty Cycle Analysis
- Fuel Injection Circuit Detection
- Resistance & Diode Testing
Package Includes
- PB500 Power Circuit Tester Unit
- Test Leads & Probes
- User Manual
- Carrying Case
