category:
Battery & Electrical System Testing
country_of_origin:
USA
dimension:
18.25”x13.25”x5.5”
manual:
https://associatedequip.com/wp-content/uploads/12-2415-User-Manual-ver4-Letter.pdf
manufacturer:
Associated Equipment
mpn:
12-2415
weight:
7 lbs
Manual Product Description

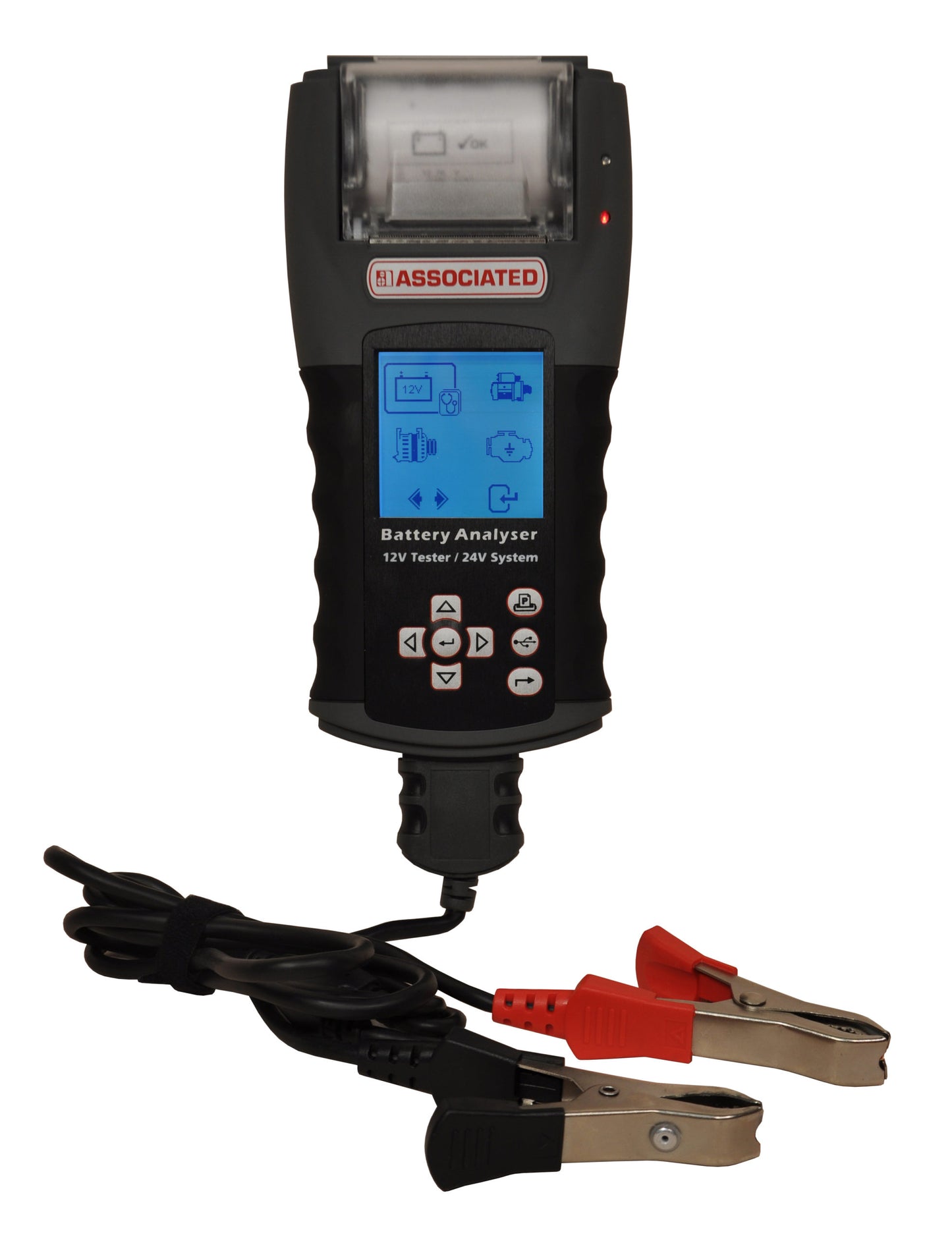

Associated Equipment - 12-2415
Features- Shown with optional 12-2416 barcode scanner
- Graphical Hand-Held Tester with Thermal Printer and USB Port
- Tests 12V Flooded, AGM, Gel Cell, Li-Ion & EFB Batteries from 100 to 2000CCA
- Graphical/Symbol Based LCD display
- Tests 12/24V charging and electrical systems
- Stores last 70 test series with or without power
- Carrying case, printing software and USB cables included
- Built-in thermal printer with thermal paper (611305)
- Field-Replaceable Cables (900165)
Additional Information
Operating Voltage 9V-36V DC (Max)
Analyzing Capacity - CCAAutomotive 12V: 100-2000A, Motorcycle 12V: 40-600A
Battery Analysis Time Approximately 8 seconds
Internal Memory Storage Stores up to 70 Test Results
Replaceable DC Lead Length 64” with Clamps
Weight 7 LBS.
Warranty 1 Year
Dimensions 18.25”x13.25”x5.5”
