diameter:
1-1/4
height:
2.80 "
length:
3.00 "
manufacturer:
B&K Products
mpn:
165-006
upc:
032888650060
weight:
1.4200 lbs
width:
2.80 "
Product Description

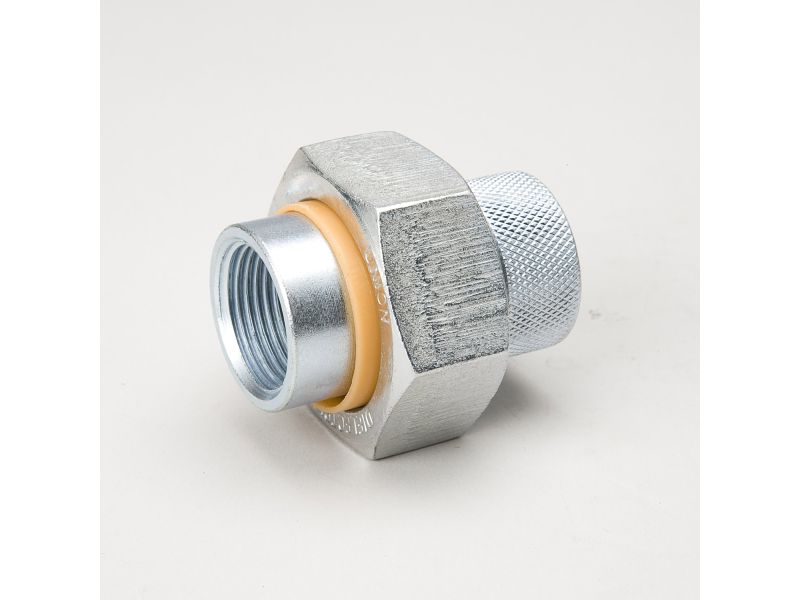

B&K Products - 165-006 ProLine Series' Dielectric Unions are the choice to prevent galvanic corrosion in commercial and residential piping systems. Installed between two pipes made of different metals, these quality fittings protect your systems by utilizing an insulating gasket insert to eliminate the electrical current development that could lead to piping deterioration. Dielectric unions are available with various connections of galvanized steel or lead-free compliant brass.
Features- Galvanized by galvanized connection prevents electrolysis or galvanic action when connecting dissimilar materials
- For use with water up to 210°F
- Threaded ends comply with ANSI B1.20.1
- Galvanized FIP x galvanized FIP threads
- Rubber washer provides a water-tight seal when tightened
- Working pressure of 200 PSI WOG (water, oil, gas)
Additional Information
Inlet Diameter (in) 1-1/4
Inlet Connection FIP
Outlet Diameter (in) 1-1/4
Outlet Connection FIP
Product Length (in) 3.00
Product Height (in) 2.80
Product Width (in) 2.80
Product Weight (lbs) 1.4200
Working Pressure (PSI) 100
Maximum Pressure (PSI) 250
Minimum Temperature (ºF) 32
Working Temperature (ºF) 140
Maximum Temperature (ºF) 180
Unit of Measure EA
Prop65 ID Chromium
Warranty Code 1-year limited warranty
Product Type Dielectric Unions
Product Material Steel
Standards AB 1953,NSF/ANSI 372
