category:
Structural Fittings & Pipe Structural Fittings
diameter:
1/2
height:
1.60 "
length:
1.80 "
manufacturer:
B&K Products
mpn:
168-003NL
subcategory:
Tees
upc:
032888121270
weight:
0.3200 lbs
width:
1.60 "
Product Description

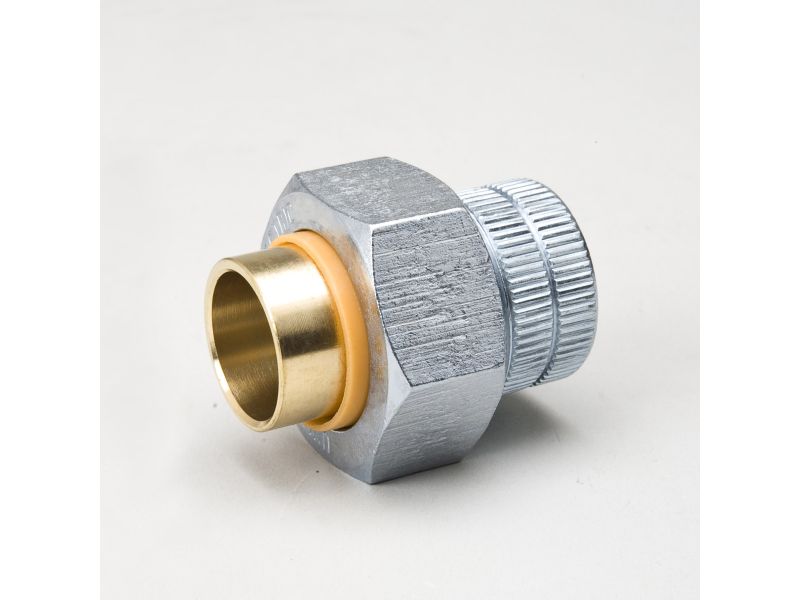

B&K Products - 168-003NL ProLine's Dielectric Unions are the choice to prevent galvanic corrosion in commercial and residential piping systems. Installed between two pipes made of different metals, these quality fittings protect your systems by utilizing an insulating gasket insert to eliminate the electrical current development that could lead to piping deterioration. Dielectric unions are available with various connections of galvanized steel or lead-free compliant brass.
Features- Connects two lengths of pipe of dissimilar materials
- Helps to prevent corrosion caused by galvanic action or electrolysis
- For use with water up to 210°F
- Union includes insulator sleeve and rubber washer
- Solder connections comply to ANSI B16.18
- Threaded connections comply with ANSI B1.20.1
Additional Information
Inlet Diameter (in) 1/2
Inlet Connection FIP
Outlet Diameter (in) 1/2
Outlet Connection SWT
Product Length (in) 1.80
Product Height (in) 1.60
Product Width (in) 1.60
Product Weight (lbs) 0.3200
Working Pressure (PSI) 100
Maximum Pressure (PSI) 250
Minimum Temperature (ºF) 32
Working Temperature (ºF) 140
Maximum Temperature (ºF) 180
Unit of Measure EA
Prop65 ID Chromium
Warranty Code 1-year limited warranty
Product Type Dielectric Unions
Product Material Steel
Standards AB 1953,NSF/ANSI 372
