category:
Bath & Kitchen Products
diameter:
6
height:
9.33 "
length:
7.87 "
manufacturer:
B&K Products
mpn:
510-013
subcategory:
Elbow
upc:
032888360655
weight:
20.4060 lbs
width:
9.33 "
Product Description

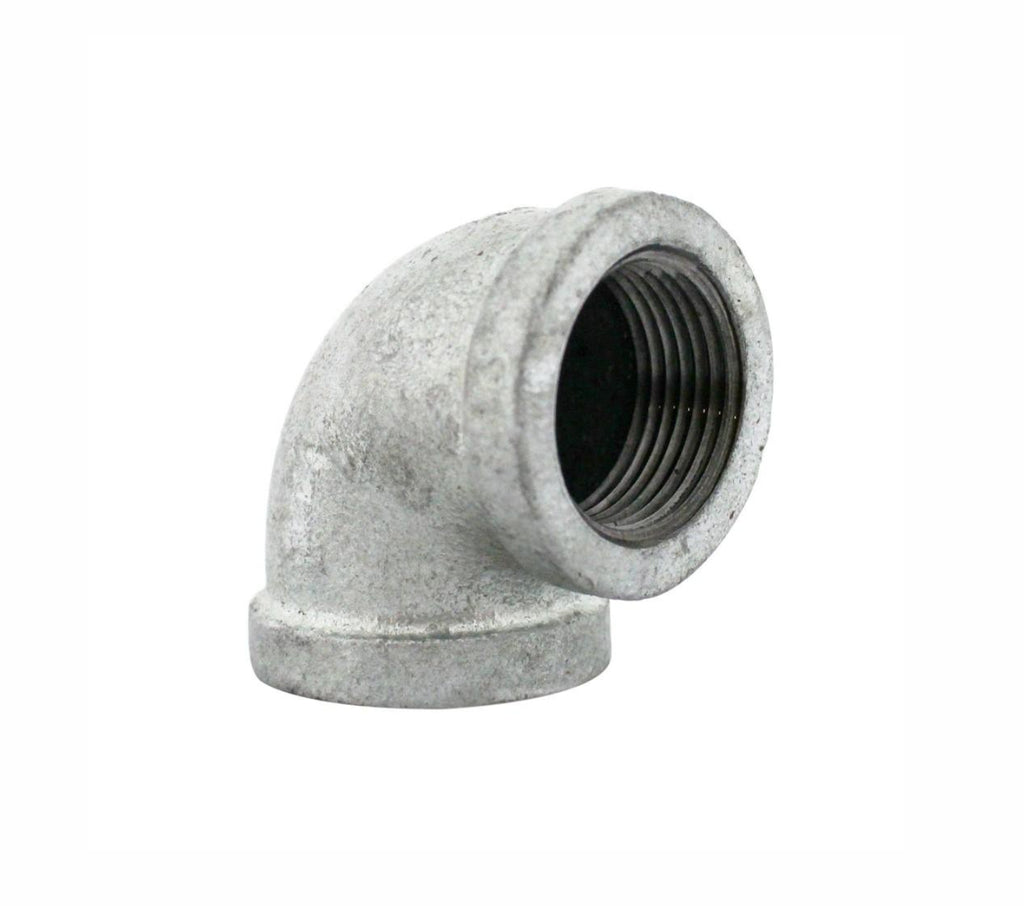

B&K Products - 510-013 The 90° Elbow allows you to redirect your piping system in a needed direction. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your DIY projects.
Features- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150-lb class malleable fittings
- This fitting works up to 500 PSI at 150°F
- Relative softness of metal helps provide a sure seal
- Threaded ends comply with ANSI/ASME B1.20.1 standards
Additional Information
Inlet Diameter (in) 6
Inlet Connection FIP
Outlet Diameter (in) 6
Outlet Connection FIP
Product Length (in) 7.87
Product Height (in) 9.33
Product Width (in) 9.33
Product Weight (lbs) 20.4060
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Bisphenol A (BPA)
Warranty Code 1-year limited warranty
Product Type 90 Elbows
Product Material Malleable Iron
Standards FM 1920
