B&K Products

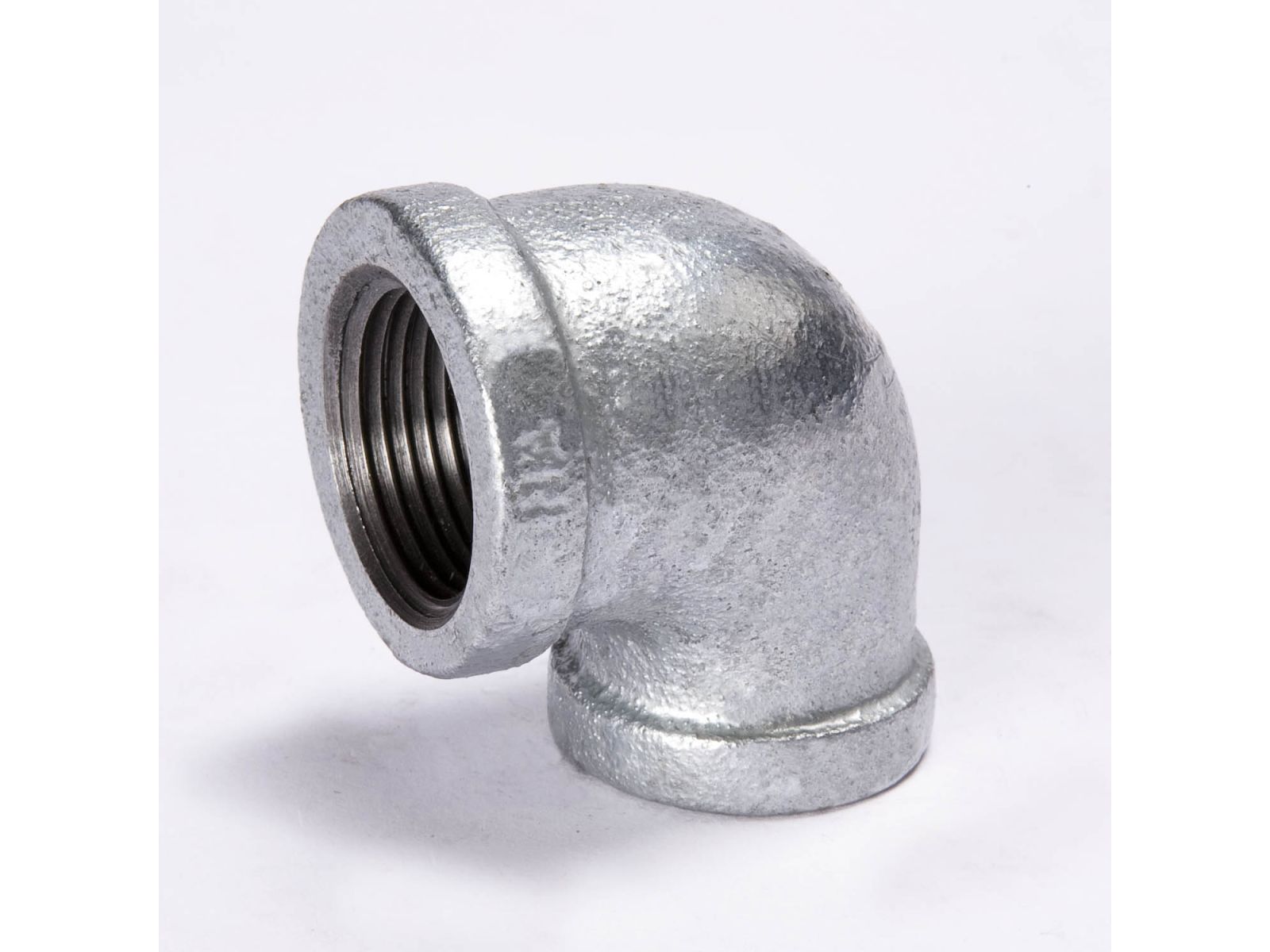

B&K Products 510-163 1-1/4 X 1/2 Reducing Elbow

B&K Products 510-163 1-1/4 X 1/2 Reducing Elbow

Dropship

Get it by Wed, Jun 11 - Mon, Jun 16

SKU kpi141-510-163

0
(0 rating)
$4.97 USD
$4.97 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Bath & Kitchen Products
diameter: 1-1/4
height: 1.97 "
length: 2.20 "
manufacturer: B&K Products
mpn: 510-163
subcategory: Elbow
upc: 032888367753
weight: 0.6019 lbs
width: 2.60 "

Product Description

B&K Products - 510-163 The 90° Reducing Elbow allows you to connect two male-ended pipes of differing diameters. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your DIY projects.

Features
  • Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
  • Galvanized malleable iron construction with zinc coating
  • 150-lb class malleable fittings
  • This fitting works up to 500 PSI at 150°F
  • Relative softness of metal helps provide a sure seal
  • Threaded ends comply with ANSI/ASME B1.20.1 standards

Additional Information

Inlet Diameter (in) 1-1/4
Inlet Connection FIP
Outlet Diameter (in) 1/2
Outlet Connection FIP
Product Length (in) 2.20
Product Height (in) 1.97
Product Width (in) 2.60
Product Weight (lbs) 0.6019
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Bisphenol A (BPA)
Warranty Code 1-year limited warranty
Product Type 90 Elbows
Product Material Malleable Iron
Standards NSF/ANSI 372,NSF/ANSI 61,ASME B16.3,FM 1920
