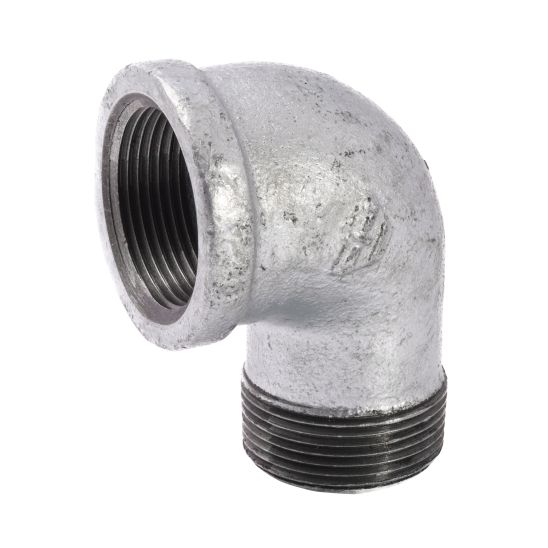

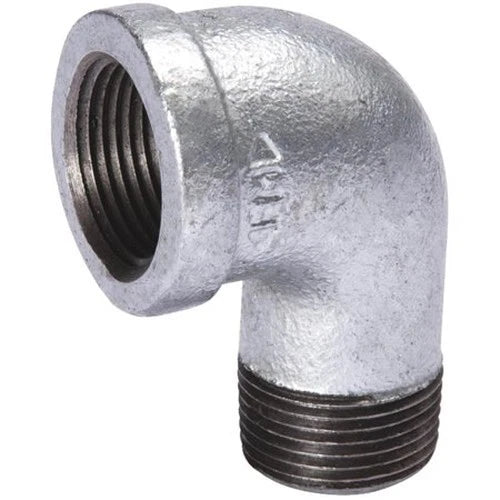

B&K Products 510-306 1-1/4" Street Elbow 90

B&K Products 510-306 1-1/4" Street Elbow 90

Back Order

Get it by Mon, May 26 - Sat, May 31

SKU kpi141-510-306

0
(0 rating)
$4.43 USD
$4.43 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Bath & Kitchen Products
diameter: 1-1/4
height: 2.64 "
length: 2.17 "
manufacturer: B&K Products
mpn: 510-306
subcategory: Elbow
upc: 032888367265
weight: 0.9744 lbs
width: 3.58 "

Product Description

B&K Products - 510-306 Street Elbows are used around existing piping mounted on flat surfaces such as a wall or ceiling. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your DIY projects.

Features
  • Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
  • Galvanized malleable iron construction with zinc coating
  • 150-lb class malleable fittings
  • This fitting works up to 500 PSI at 150°F
  • Relative softness of metal helps provide a sure seal
  • Threaded ends comply with ANSI/ASME B1.20.1 standards

Additional Information

Inlet Diameter (in) 1-1/4
Inlet Connection FIP
Outlet Diameter (in) 1-1/4
Outlet Connection MIP
Product Length (in) 2.17
Product Height (in) 2.64
Product Width (in) 3.58
Product Weight (lbs) 0.9744
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type 90 Elbows
Product Material Malleable Iron
Standards FM 1920,NSF/ANSI 372,NSF/ANSI 61,ASME B16.3
