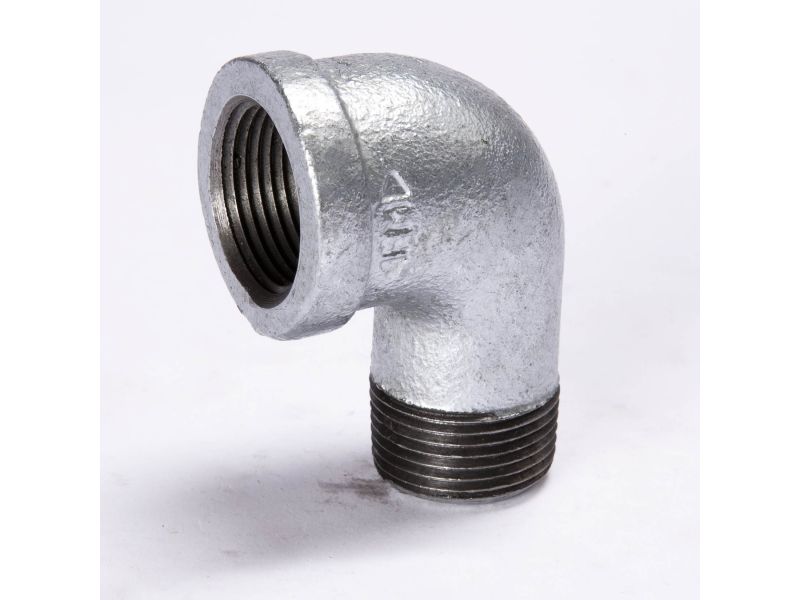

B&K Products 510-309 2-1/2" Street Elbow 90

B&K Products 510-309 2-1/2" Street Elbow 90

Back Order

Get it by Fri, May 30 - Wed, Jun 04

SKU kpi141-510-309

0
(0 rating)
$25.65 USD
$25.65 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Bath & Kitchen Products
diameter: 2-1/2
height: 4.21 "
length: 3.60 "
manufacturer: B&K Products
mpn: 510-309
subcategory: Elbow
upc: 032888360761
weight: 3.4319 lbs
width: 5.71 "

Product Description

B&K Products - 510-309 Street Elbows are used around existing piping mounted on flat surfaces such as a wall or ceiling. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your DIY projects.

Features
  • Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
  • Galvanized malleable iron construction with zinc coating
  • 150-lb class malleable fittings
  • This fitting works up to 500 PSI at 150°F
  • Relative softness of metal helps provide a sure seal
  • Threaded ends comply with ANSI/ASME B1.20.1 standards

Additional Information

Inlet Diameter (in) 2-1/2
Inlet Connection FIP
Outlet Diameter (in) 2-1/2
Outlet Connection MIP
Product Length (in) 3.60
Product Height (in) 4.21
Product Width (in) 5.71
Product Weight (lbs) 3.4319
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type 90 Elbows
Product Material Malleable Iron
Standards FM 1920,NSF/ANSI 372,NSF/ANSI 61,ASME B16.3
