B&K Products 510-609Bc 2-1/2" Tee

B&K Products 510-609Bc 2-1/2" Tee

Dropship

Get it by Tue, Jul 22 - Sun, Jul 27

SKU kpi141-510-609BC

0
(0 rating)
$28.84 USD
$28.84 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Structural Fittings & Pipe Structural Fittings
diameter: 2-1/2
height: 3.62 "
length: 5.28 "
manufacturer: B&K Products
mpn: 510-609BC
subcategory: Tees
upc: 032888360822
weight: 4.5090 lbs
width: 4.45 "

Product Description

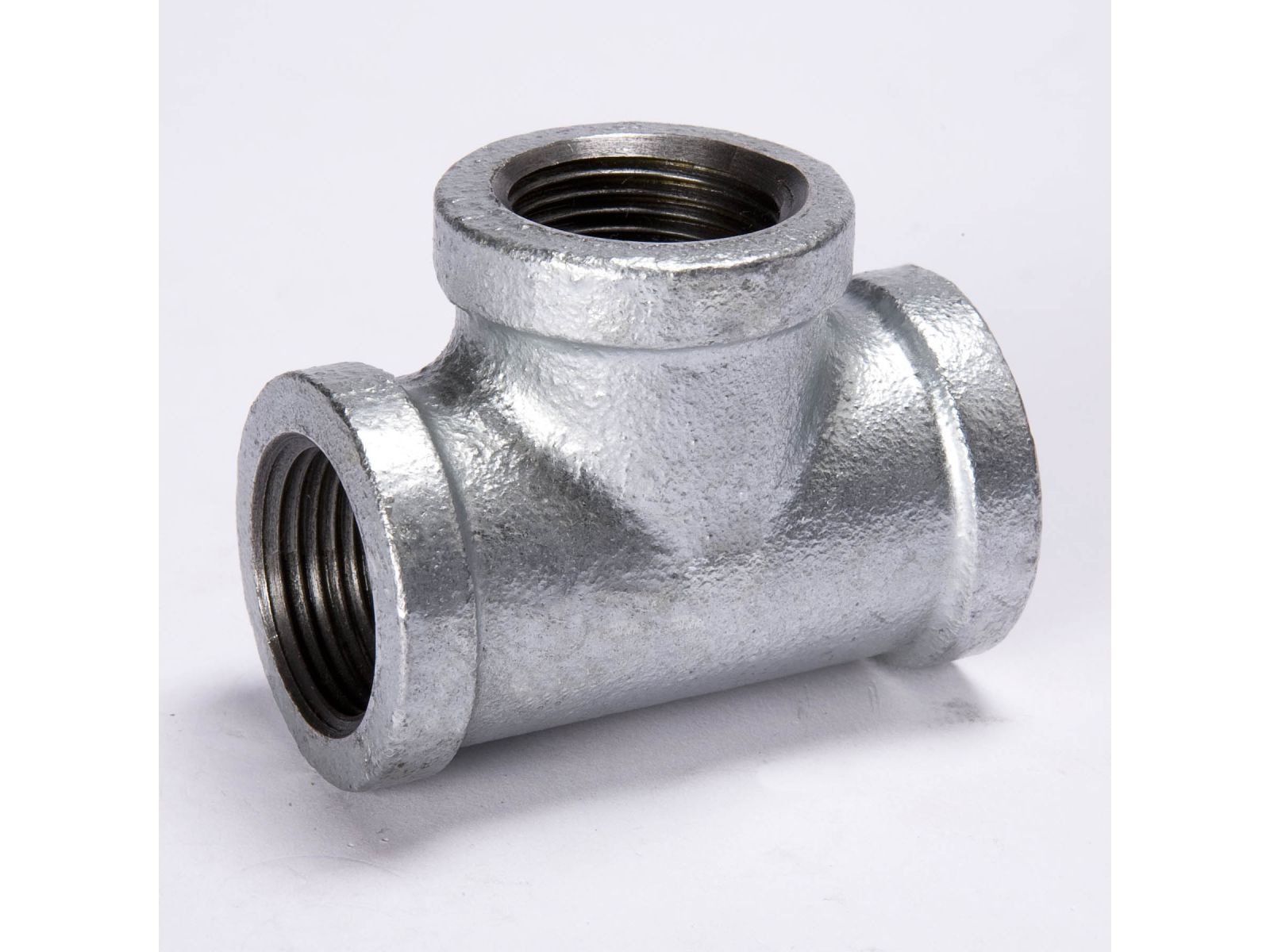

B&K Products - 510-609BC The Tee provides a secure central connection point for three piping systems. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.

Features
  • Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
  • Galvanized malleable iron construction with zinc coating
  • 150-lb class malleable fittings
  • This fitting works up to 500 PSI at 150°F
  • Relative softness of metal helps provide a sure seal
  • Threaded ends comply with ANSI/ASME B1.20.1 standards

Additional Information

Inlet Diameter (in) 2-1/2
Inlet Connection FIP
Outlet Diameter (in) 2-1/2
Outlet Connection FIP
Branch 1 Diameter (in) 2-1/2
Branch 1 Connection FIP
Product Length (in) 5.28
Product Height (in) 3.62
Product Width (in) 4.45
Product Weight (lbs) 4.5090
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type Tees
Product Material Malleable Iron
Standards NSF/ANSI 61,HHXX,FM1920,NSF/ANSI 372,AB 1953
