B&K Products

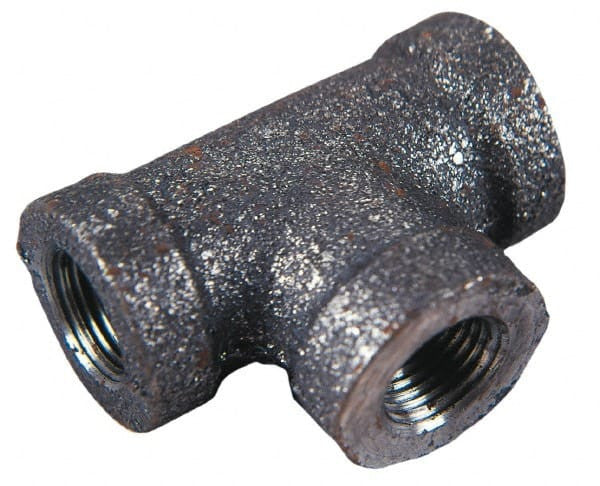

B&K Products 510-664Hc 1-1/4" X 3/4" Reducing Tee

Back Order

Get it by Thu, May 22 - Tue, May 27

SKU SKU:kpi141-510-664HC

(0 rating)

$5.97 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

30-day returns
Fast shipping
Secure payments
Over 300,000 products

category: Structural Fittings & Pipe Structural Fittings

diameter: 1-1/4

height: 2.17 "

length: 2.87 "

manufacturer: B&K Products

mpn: 510-664HC

subcategory: Tees

upc: 032888994379

weight: 0.9510 lbs

width: 2.72 "

Product Description

B&K Products - 510-664HC Reducing Tees allows for matching inlet and outlet connections with a differing branch size. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.

Features

Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
Galvanized malleable iron construction with zinc coating
150-lb class malleable fittings
This fitting works up to 500 PSI at 150°F
Relative softness of metal helps provide a sure seal
Threaded ends comply with ANSI/ASME B1.20.1 standards

Additional Information

Inlet Diameter (in) 1-1/4

Inlet Connection FIP

Outlet Diameter (in) 1-1/4

Outlet Connection FIP

Branch 1 Diameter (in) 3/4

Branch 1 Connection FIP

Product Length (in) 2.87

Product Height (in) 2.17

Product Width (in) 2.72

Product Weight (lbs) 0.9510

Working Pressure (PSI) 232

Maximum Pressure (PSI) 300

Minimum Temperature (ºF) -20

Working Temperature (ºF) 77

Maximum Temperature (ºF) 347

Unit of Measure EA

Prop65 ID Lead

Warranty Code 1-year limited warranty

Product Type 2-Way Reducing Tees

Product Material Malleable Iron

Standards NSF/ANSI 61,HHXX,FM1920,NSF/ANSI 372,AB 1953

B&K Products 510-664Hc 1-1/4" X 3/4" Reducing Tee
