category:
Structural Fittings & Pipe Structural Fittings
diameter:
3/4
height:
1.50 "
length:
3.19 "
manufacturer:
B&K Products
mpn:
510-684HC
subcategory:
Tees
upc:
032888106840
weight:
0.4960 lbs
width:
2.09 "
Product Description

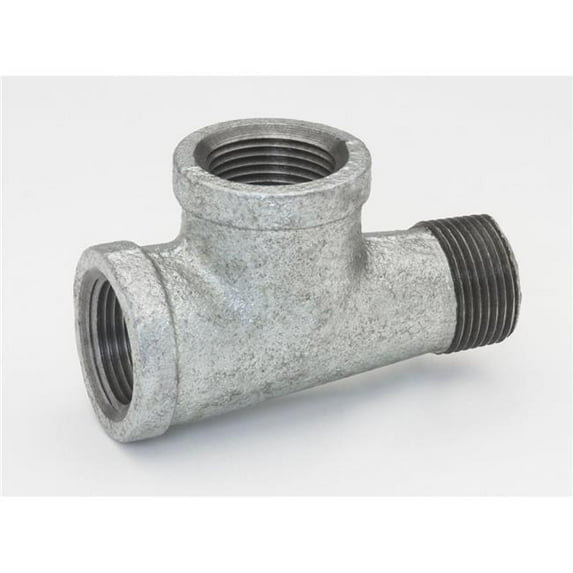

B&K Products - 510-684HC The Service Tee provides a secure central connection point for three piping systems, with the outlet changing to a MIP connection. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage, or creating your own DIY projects.
Features- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150-lb class malleable fittings
- This fitting works up to 500 PSI at 150°F
- Relative softness of metal helps provide a sure seal
- Threaded ends comply with ANSI/ASME B1.20.1 standards
Additional Information
Inlet Diameter (in) 3/4
Inlet Connection FIP
Outlet Diameter (in) 3/4
Outlet Connection MIP
Branch 1 Diameter (in) 3/4
Branch 1 Connection FIP
Product Length (in) 3.19
Product Height (in) 1.50
Product Width (in) 2.09
Product Weight (lbs) 0.4960
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type Service Tee
Product Material Malleable Iron
Standards NSF/ANSI 61,NSF/ANSI 372,AB 1953
