category:
Structural Fittings & Pipe Structural Fittings
diameter:
2
height:
2.99 "
length:
3.35 "
manufacturer:
B&K Products
mpn:
510-785HC
subcategory:
Tees
upc:
032888405509
weight:
1.7990 lbs
width:
3.47 "
Product Description

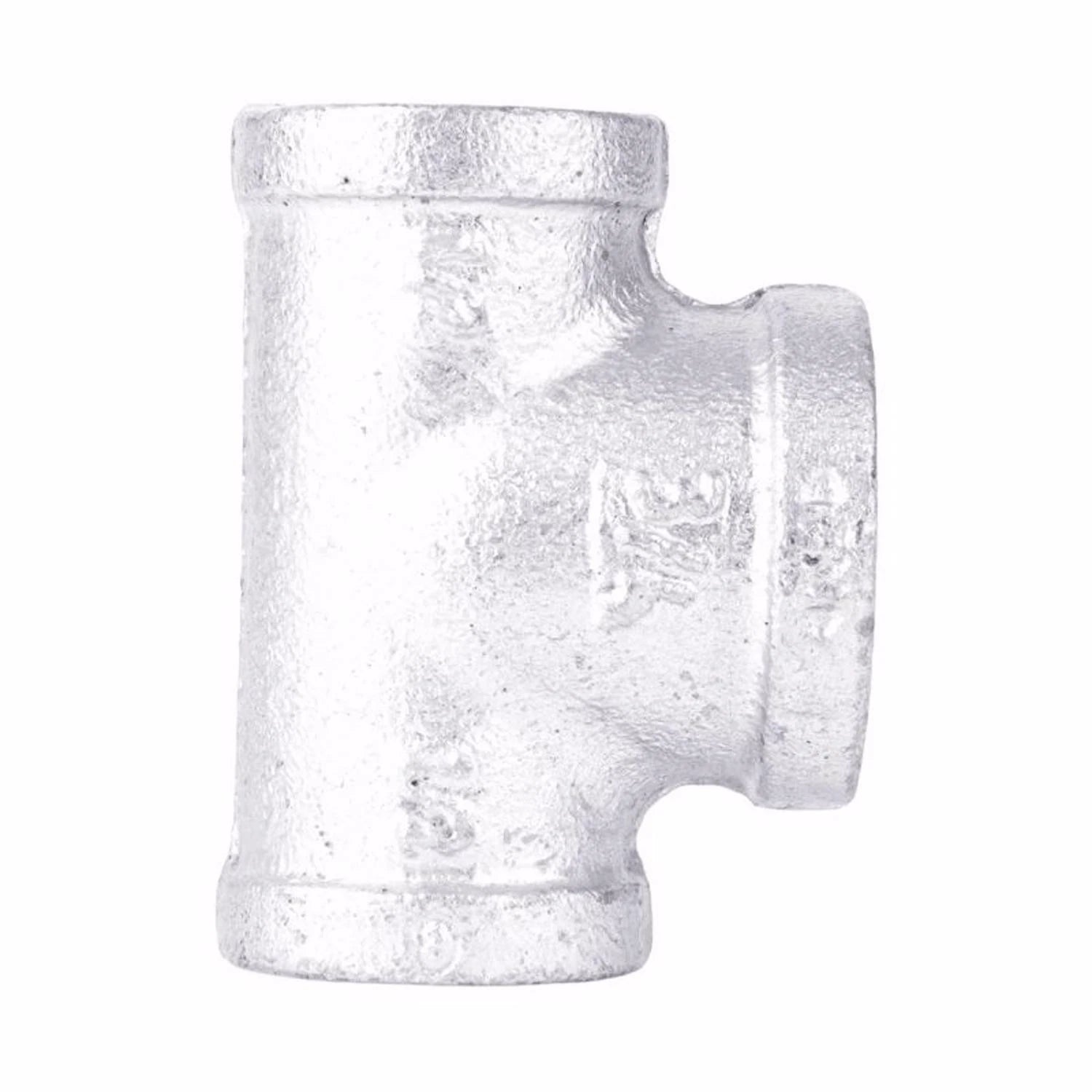

B&K Products - 510-785HC Reducing Tees allows for matching inlet and outlet connections with a differing branch size. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.
Features- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150-lb class malleable fittings
- This fitting works up to 500 PSI at 150°F
- Relative softness of metal helps provide a sure seal
- Threaded ends comply with ANSI/ASME B1.20.1 standards
Additional Information
Inlet Diameter (in) 2
Inlet Connection FIP
Outlet Diameter (in) 2
Outlet Connection FIP
Branch 1 Diameter (in) 1
Branch 1 Connection FIP
Product Length (in) 3.35
Product Height (in) 2.99
Product Width (in) 3.47
Product Weight (lbs) 1.7990
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Chromium, Lead
Warranty Code 1-year limited warranty
Product Type 2-Way Reducing Tees
Product Material Malleable Iron
Standards NSF/ANSI 61,HHXX,FM1920,NSF/ANSI 372,AB 1953
