category:
Structural Fittings & Pipe Structural Fittings
diameter:
3/4
height:
2.03 "
length:
2.40 "
manufacturer:
B&K Products
mpn:
510-814
upc:
032888108141
weight:
0.5622 lbs
width:
2.13 "
Product Description

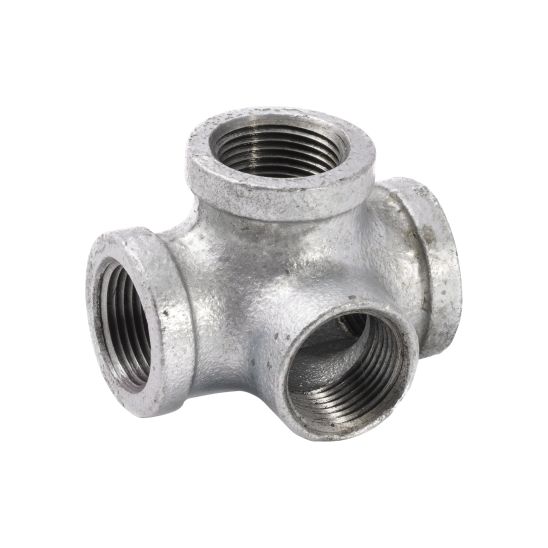

B&K Products - 510-814 Side Outlet Tees provide a unique connection by providing another branch that runs perpendicular to the tee’s body. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.
Features- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150-lb class malleable fittings
- This fitting works up to 500 PSI at 150°F
- Relative softness of metal helps provide a sure seal
- Threaded ends comply with ANSI/ASME B1.20.1 standards
Additional Information
Inlet Diameter (in) 3/4
Inlet Connection FIP
Outlet Diameter (in) 3/4
Outlet Connection FIP
Branch 1 Diameter (in) 3/4
Branch 1 Connection FIP
Branch 2 Diameter (in) 3/4
Branch 2 Connection FIP
Product Length (in) 2.40
Product Height (in) 2.03
Product Width (in) 2.13
Product Weight (lbs) 0.5622
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type Side Outlet Tee
Product Material Malleable Iron
Standards NSF/ANSI 61,NSF/ANSI 372,ASME B16.3
