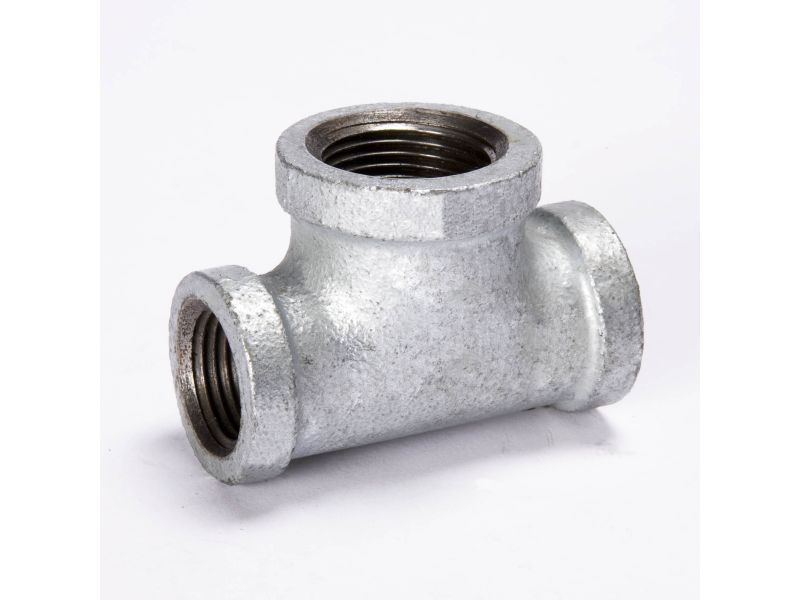

B&K Products 510-946 4" X 1-1/4" Reducing Tee

B&K Products 510-946 4" X 1-1/4" Reducing Tee

Back Order

Get it by Sat, May 31 - Thu, Jun 05

SKU kpi141-510-946

0
(0 rating)
$95.13 USD
$95.13 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Structural Fittings & Pipe Structural Fittings
diameter: 4
height: 5.53 "
length: 40.95 "
manufacturer: B&K Products
mpn: 510-946
upc: 032888369085
weight: 6.3934 lbs
width: 6.12 "

Product Description

B&K Products - 510-946 Reducing Tees allows for matching inlet and outlet connections with a differing branch size. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.

Features
  • Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
  • Galvanized malleable iron construction with zinc coating
  • 150-lb class malleable fittings
  • This fitting works up to 500 PSI at 150°F
  • Relative softness of metal helps provide a sure seal
  • Threaded ends comply with ANSI/ASME B1.20.1 standards

Additional Information

Inlet Diameter (in) 4
Inlet Connection FIP
Outlet Diameter (in) 4
Outlet Connection FIP
Branch 1 Diameter (in) 1-1/4
Branch 1 Connection FIP
Product Length (in) 40.95
Product Height (in) 5.53
Product Width (in) 6.12
Product Weight (lbs) 6.3934
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Chromium, Lead
Warranty Code 1-year limited warranty
Product Type 2-Way Reducing Tees
Product Material Malleable Iron
Standards NSF/ANSI 61,NSF/ANSI 372,ASME B16.3
