category:
Piping Systems
diameter:
2
height:
2.99 "
length:
4.49 "
manufacturer:
B&K Products
mpn:
511-008HC
subcategory:
Cross
upc:
032888009899
weight:
2.9370 lbs
width:
4.49 "
Product Description

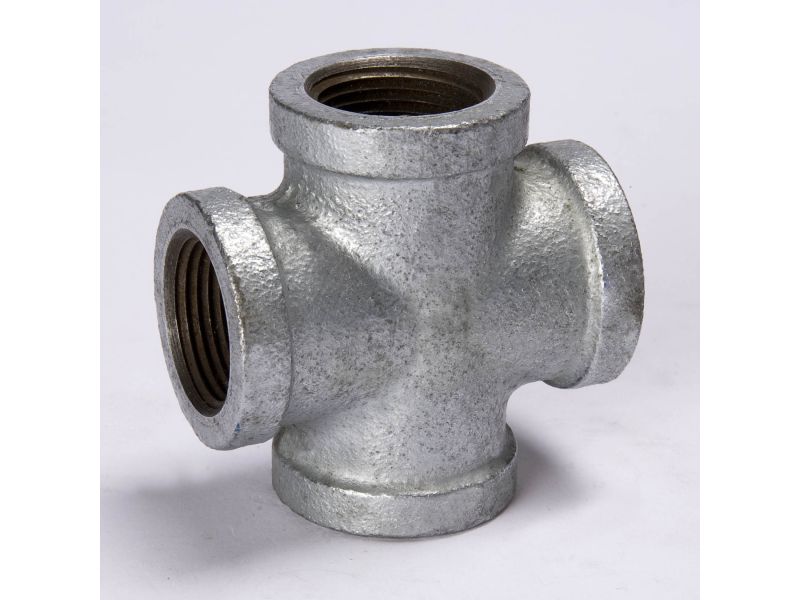

B&K Products - 511-008HC When two piping systems intersect, the Cross will provide the needed secure connection. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.
Features- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150-lb class malleable fittings
- This fitting works up to 500 PSI at 150°F
- Relative softness of metal helps provide a sure seal
- Threaded ends comply with ANSI/ASME B1.20.1 standards
Additional Information
Inlet Diameter (in) 2
Inlet Connection FIP
Outlet Diameter (in) 2
Outlet Connection FIP
Branch 1 Diameter (in) 2
Branch 1 Connection FIP
Branch 2 Diameter (in) 2
Branch 2 Connection FIP
Product Length (in) 4.49
Product Height (in) 2.99
Product Width (in) 4.49
Product Weight (lbs) 2.9370
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type Crosses
Product Material Malleable Iron
Standards NSF/ANSI 61,HHXX,FM1920,NSF/ANSI 372,AB 1953
