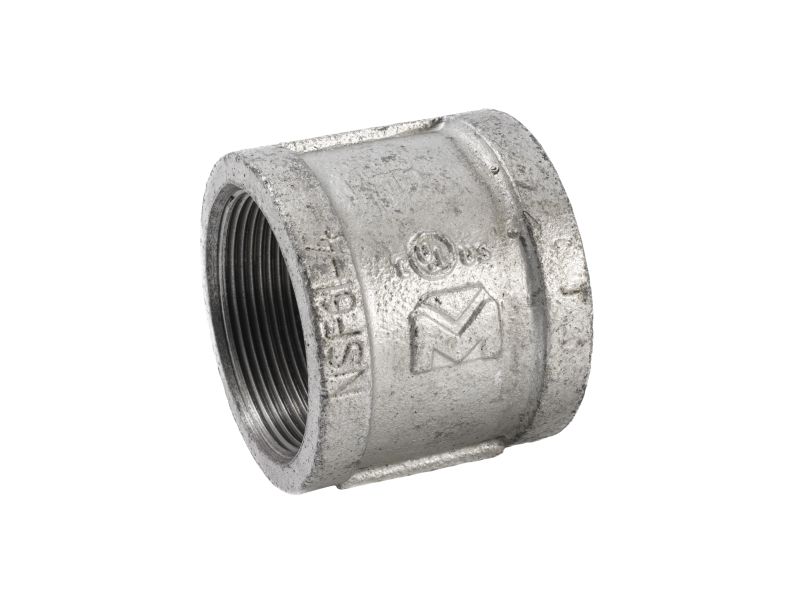

B&K Products 511-208Hn 2" Banded Coupling

B&K Products 511-208Hn 2" Banded Coupling

Dropship

Get it by Wed, Jun 11 - Mon, Jun 16

SKU kpi141-511-208HN

0
(0 rating)
$6.01 USD
$6.01 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Piping Systems
diameter: 2
height: 2.99 "
length: 2.48 "
manufacturer: B&K Products
mpn: 511-208HN
subcategory: Banded Coupling
upc: 032888405868
weight: 1.3860 lbs
width: 2.99 "

Product Description

B&K Products - 511-208HN The Coupling is perfect for creating a secure connection between two pipes of matching diameter. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your own DIY projects.

Features
  • Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
  • Galvanized malleable iron construction with zinc coating
  • 150-lb class malleable fittings
  • This fitting works up to 500 PSI at 150°F
  • Relative softness of metal helps provide a sure seal
  • Threaded ends comply with ANSI/ASME B1.20.1 standards

Additional Information

Inlet Diameter (in) 2
Inlet Connection FIP
Outlet Diameter (in) 2
Outlet Connection FIP
Product Length (in) 2.48
Product Height (in) 2.99
Product Width (in) 2.99
Product Weight (lbs) 1.3860
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type Couplings
Product Material Malleable Iron
Standards NSF/ANSI 61,HHXX,FM1920,NSF/ANSI 372,AB 1953
